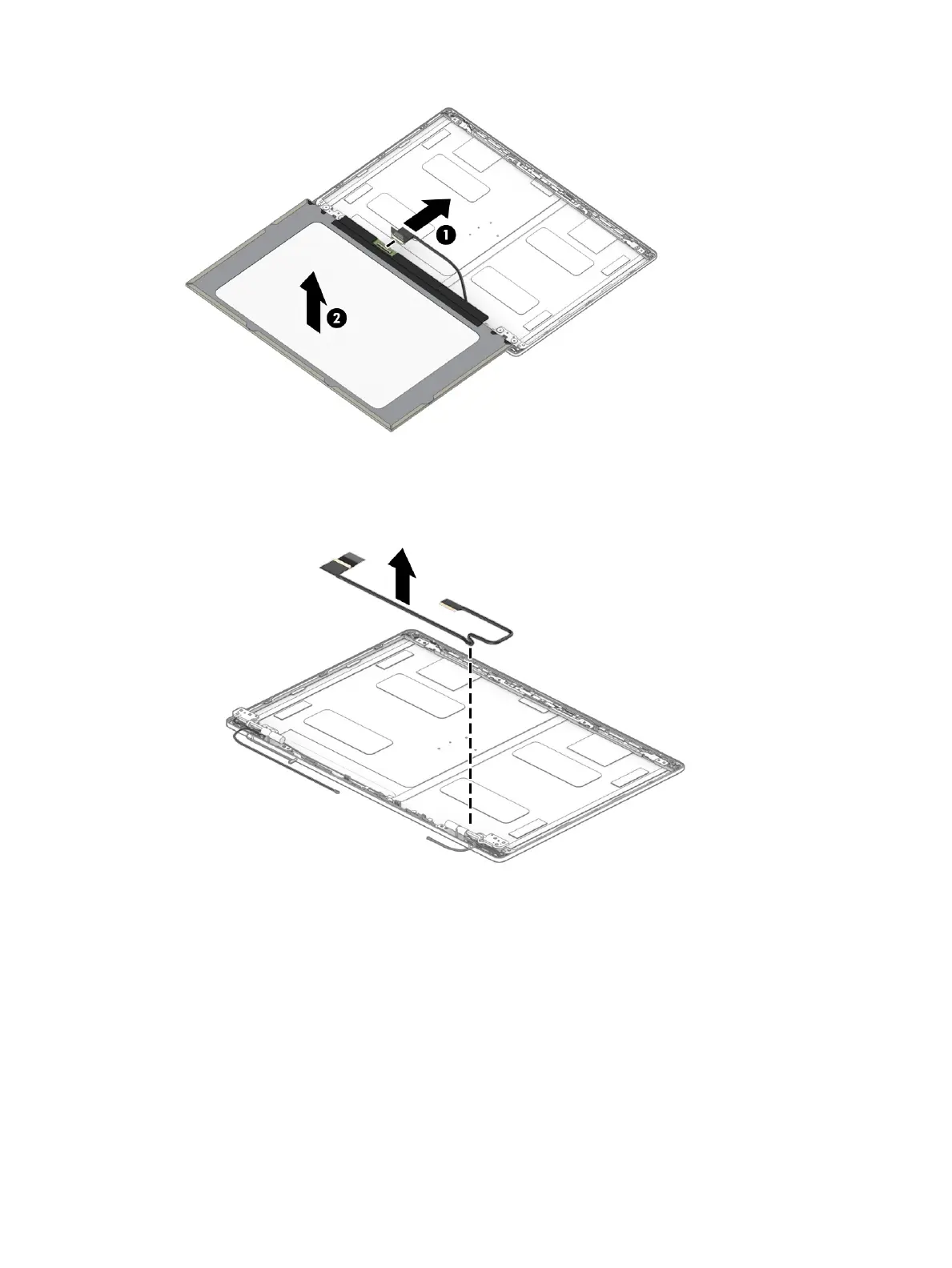

12. If you need to remove the display cable:
▲ Remove the cable from the right hinge and along the bottom of the display back cover. The display
cable is available as spare part number M49512-001.
13. If you need to remove the camera module and cable:
a. Use a at tool to lift up evenly across the camera module to remove it from the display back cover
(1), and then remove the cable and module assembly (2).
40 Chapter 5 Removal and replacement procedures for authorized service provider parts
