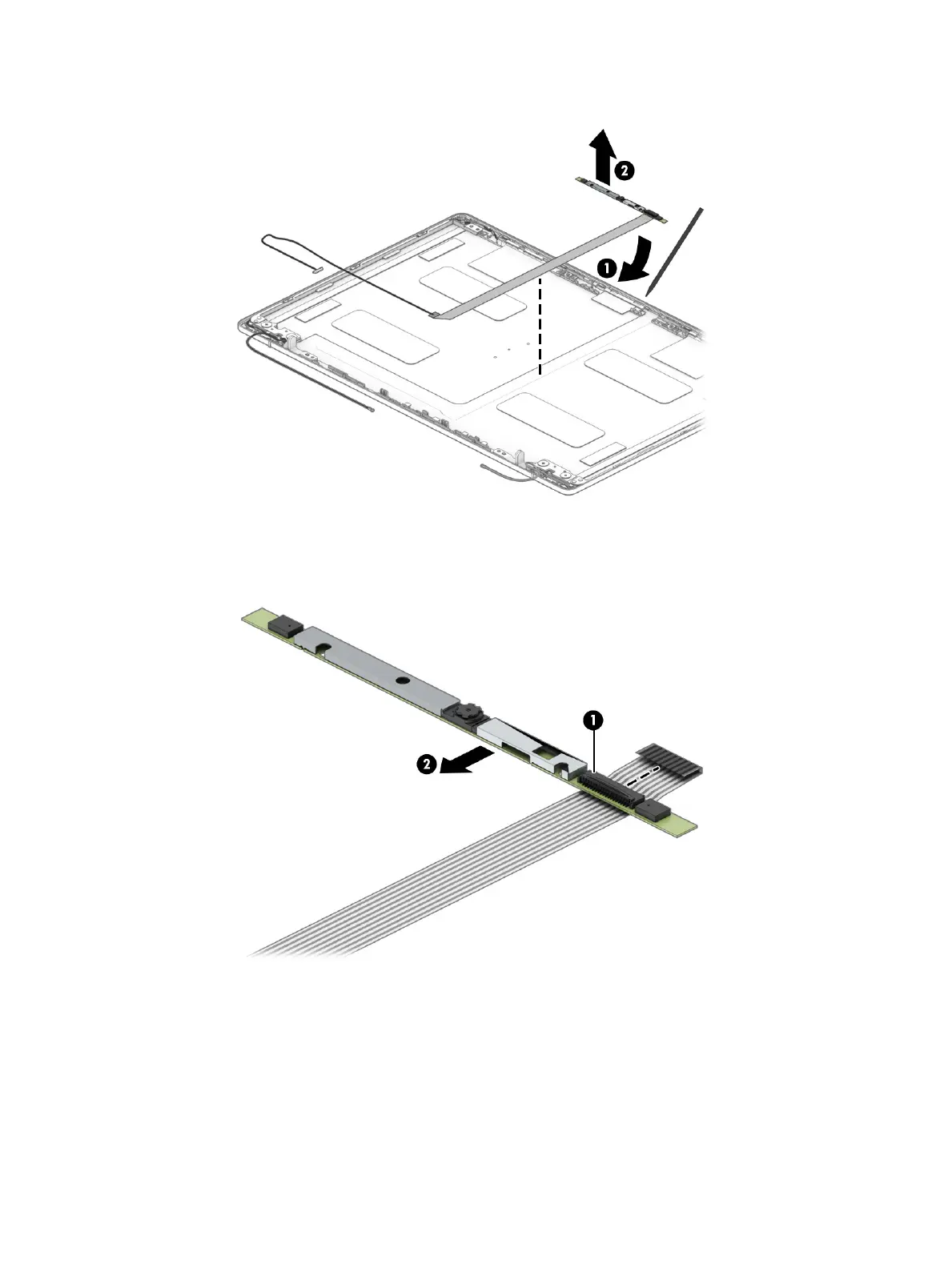

b. Lift the latch on the reverse ZIF connector on the camera module (1), and then disconnect the cable
(2). The camera module is available as spare part number M31758-001. The camera cable is
available as spare part number M12614-001.
14. If you need to remove the hinges from the display:
a. Remove the two Phillips broad head M2.5 × 2.5 screws (1) from each hinge.
b. Remove the hinges from the display (2).
The display hinges are available as spare part number M00440-001.
Component replacement procedures 41
