Use the control panel
The control panel has a VGA touchscreen that provides access to all product functions. Use the buttons
and numeric keypad to control jobs and the product status. The LEDs indicate overall product status.

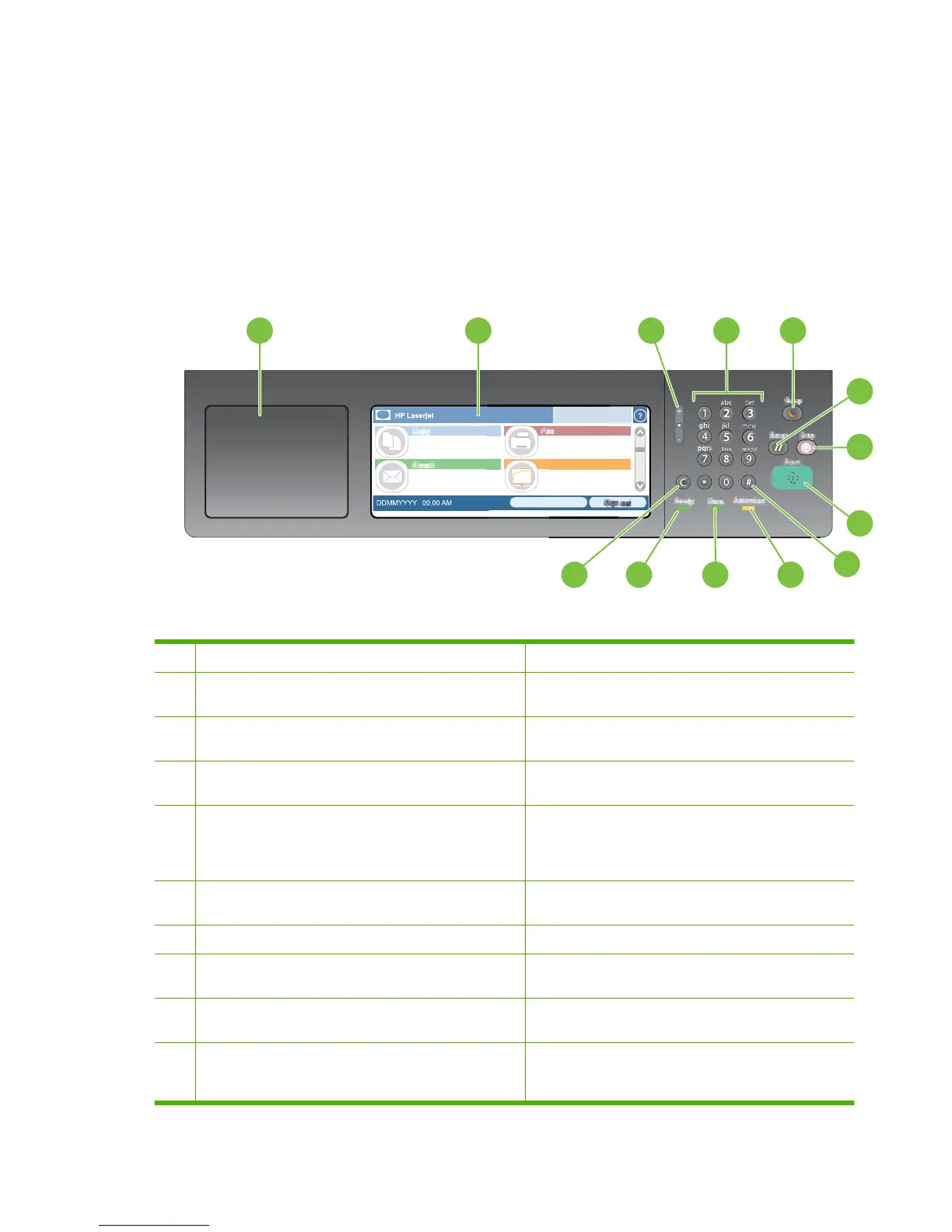

Control-panel layout
The control panel includes a touchscreen graphical display, job-control buttons, a numeric keypad, and
three light-emitting diode (LED) status lights.
hp
7
5
8
6
31
4
9
10
2
111213
1 Hardware integration port Area for adding third-party security devices
2 Touchscreen graphical display Use the touchscreen to open and set up all product
functions.
3 Brightness-adjustment button Use this button to increase or decrease the brightness of
the touchscreen display.
4 Numeric keypad Use this area to specify the number of copies and other
numeric values.
5 Sleep button If the product is inactive for a long period of time, it
automatically enters a sleep mode. To place the product
into sleep mode or to reactivate the product, press the
Sleep button.
6 Reset button Resets the job settings to factory or user-defined default
values.
7 Stop button Stops the active job and opens the Job Status screen.
8 Start button Begins a copy job, starts digital sending, starts a fax job,
or continues a job that has been interrupted.
9 # button Use this button to indicate a required pause for a fax
number.
10 Attention light The Attention light indicates that the product has a
condition that requires intervention. Examples include an
empty paper tray or an error message on the touchscreen.
