Perform the following steps to disassemble the display assembly:

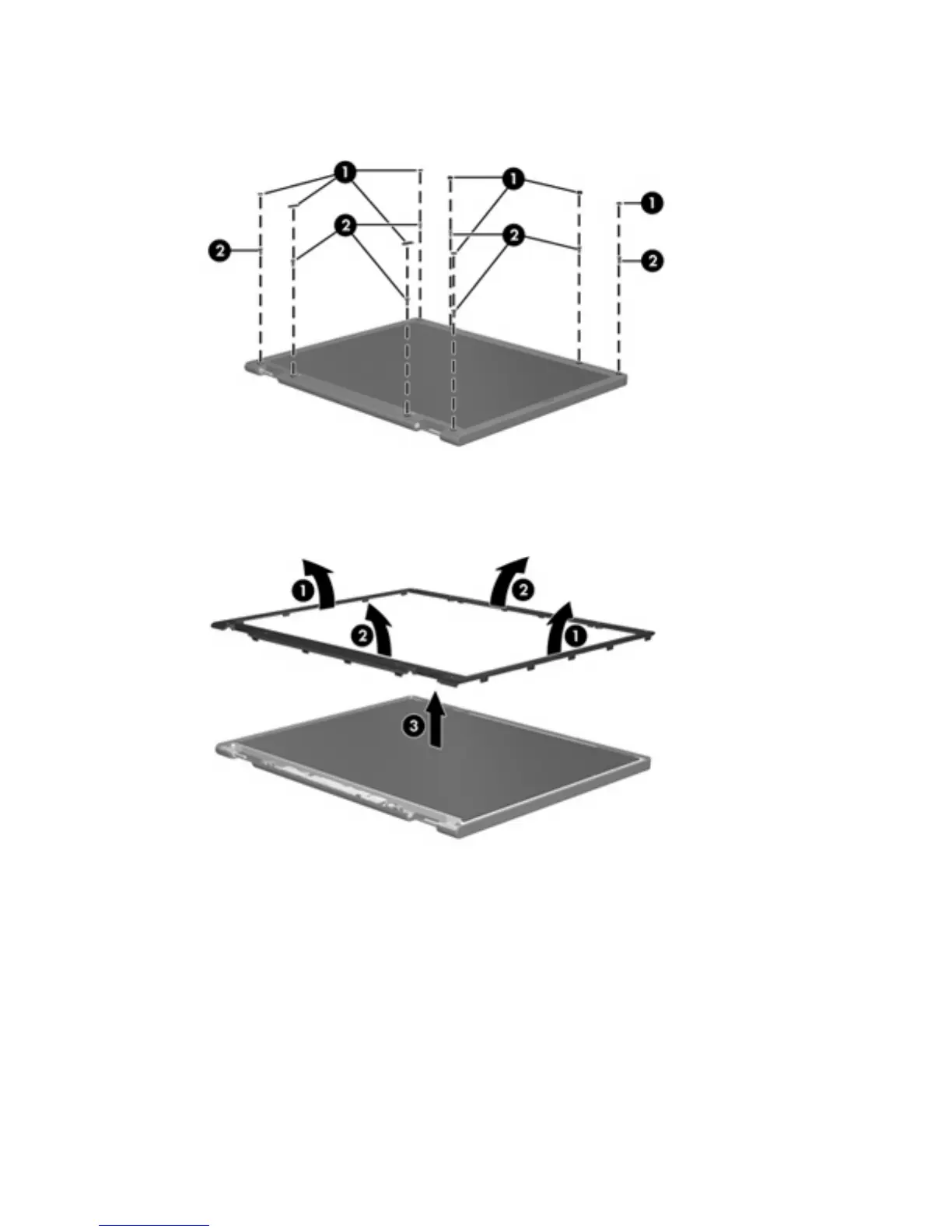

1. Remove all screw covers (1) and screws (2) that secure the display bezel to the display assembly.
2. Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of the
display bezel until the bezel disengages from the display assembly.
3. Remove the display bezel (3).
Display 149

HP COMPAQ 6510B Specifications

General

Processor	Intel Core 2 Duo
Display	14.1-inch
RAM	Up to 4 GB DDR2
Graphics	Intel GMA X3100
Operating System	Windows Vista Business
Battery	6-cell Lithium-Ion
Display Resolution	1280 x 800 (WXGA)
Storage	Up to 160 GB HDD
Weight	2.36 kg
Chipset	Intel GM965
Battery Life	Up to 4 hours
Optical Drive	DVD±RW
Networking	Wi-Fi 802.11a/b/g
Ports	3 USB 2.0
