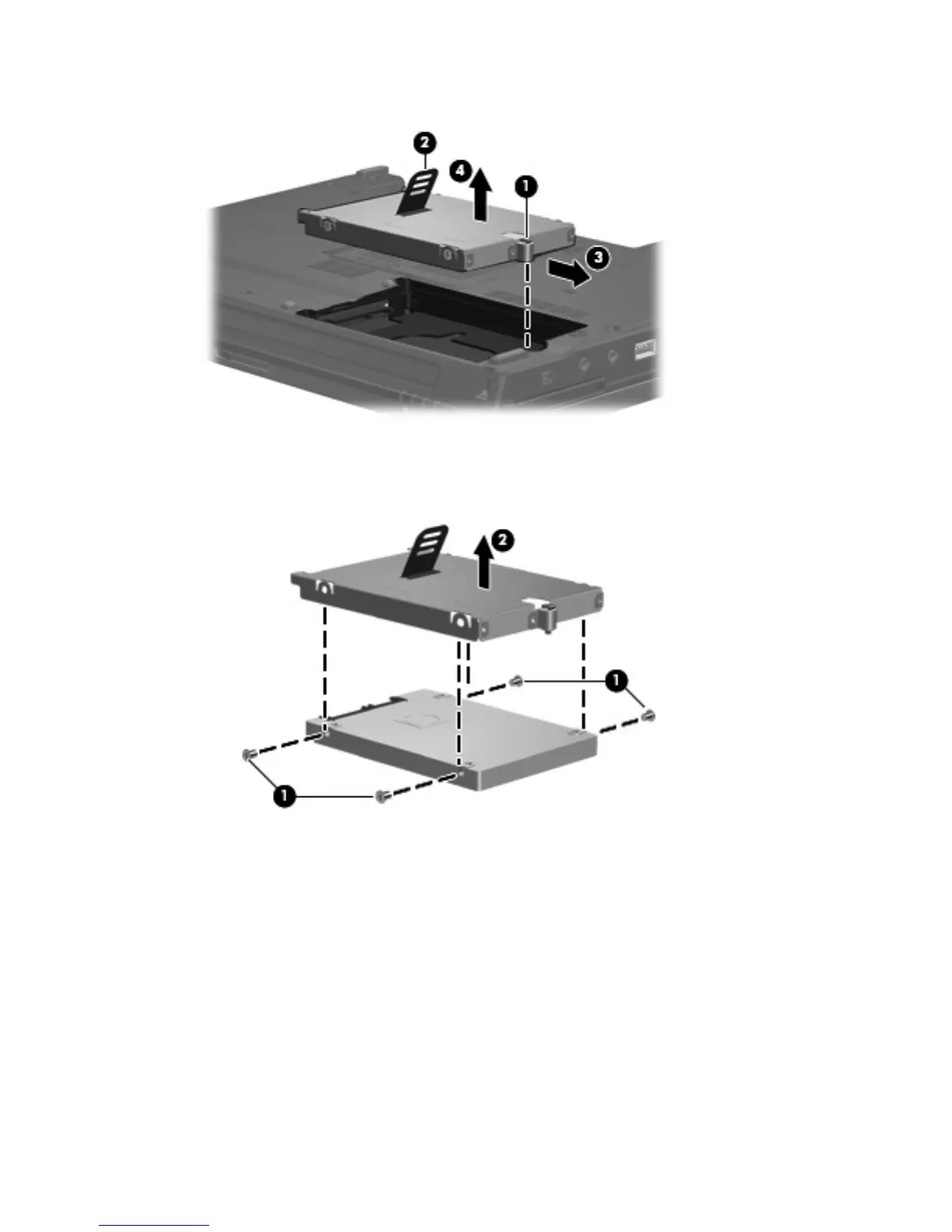

6. Remove the hard drive (4) from the hard drive bay.
7. If it is necessary to replace the hard drive bracket, remove the four Phillips PM3.0×3.0 hard drive
bracket screws (1) from each side of the hard drive.
8. Lift the bracket (2) straight up to remove it from the hard drive.
Reverse this procedure to reassemble and install the hard drive.
Component replacement procedures 51

HP COMPAQ 6510B Specifications

General

Processor	Intel Core 2 Duo
Display	14.1-inch
RAM	Up to 4 GB DDR2
Graphics	Intel GMA X3100
Operating System	Windows Vista Business
Battery	6-cell Lithium-Ion
Display Resolution	1280 x 800 (WXGA)
Storage	Up to 160 GB HDD
Weight	2.36 kg
Chipset	Intel GM965
Battery Life	Up to 4 hours
Optical Drive	DVD±RW
Networking	Wi-Fi 802.11a/b/g
Ports	3 USB 2.0
