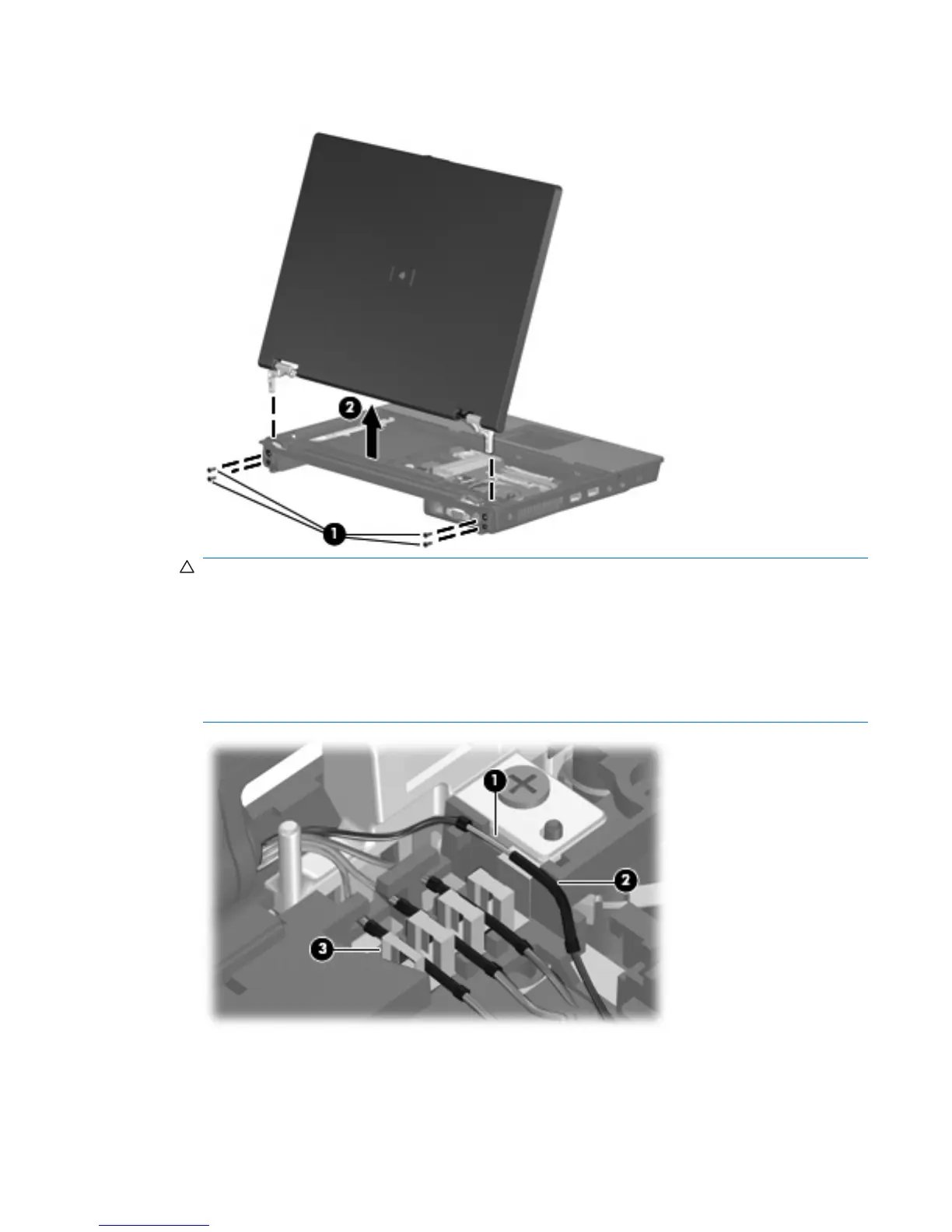

6. Lift the display assembly straight up and remove it (2).
CAUTION: When installing the display assembly, be sure that the wireless antenna cables routed
out of the display assembly right hinge are routed and arranged properly. Each antenna cable has
an exposed section of cable (1) and a metallic grounding sleeve (2). The grounding sleeve must
completely cover the exposed section of cable. Each cable must be secured inside a space in the
copper grounding clip (3). Left to right, the cables must be installed in a red, white, black, blue
sequence.
Failure to follow these routing instructions can result in degradation of the computer's WLAN and
WWAN performance.
Component replacement procedures 77
