4. Remove the battery (see Battery on page 46).

5. Remove the following components:

a. Hard drive (see

Hard drive on page 50)

b. Memory/WLAN module compartment cover (see

Expansion memory module on page 54)

c. Optical drive (see

Optical drive on page 60)

d. Keyboard (see

Keyboard on page 62)

e. Switch cover (see

Switch cover on page 68)

f. Display assembly (see

Display assembly on page 75)

g. Top cover (see

Top cover on page 79)

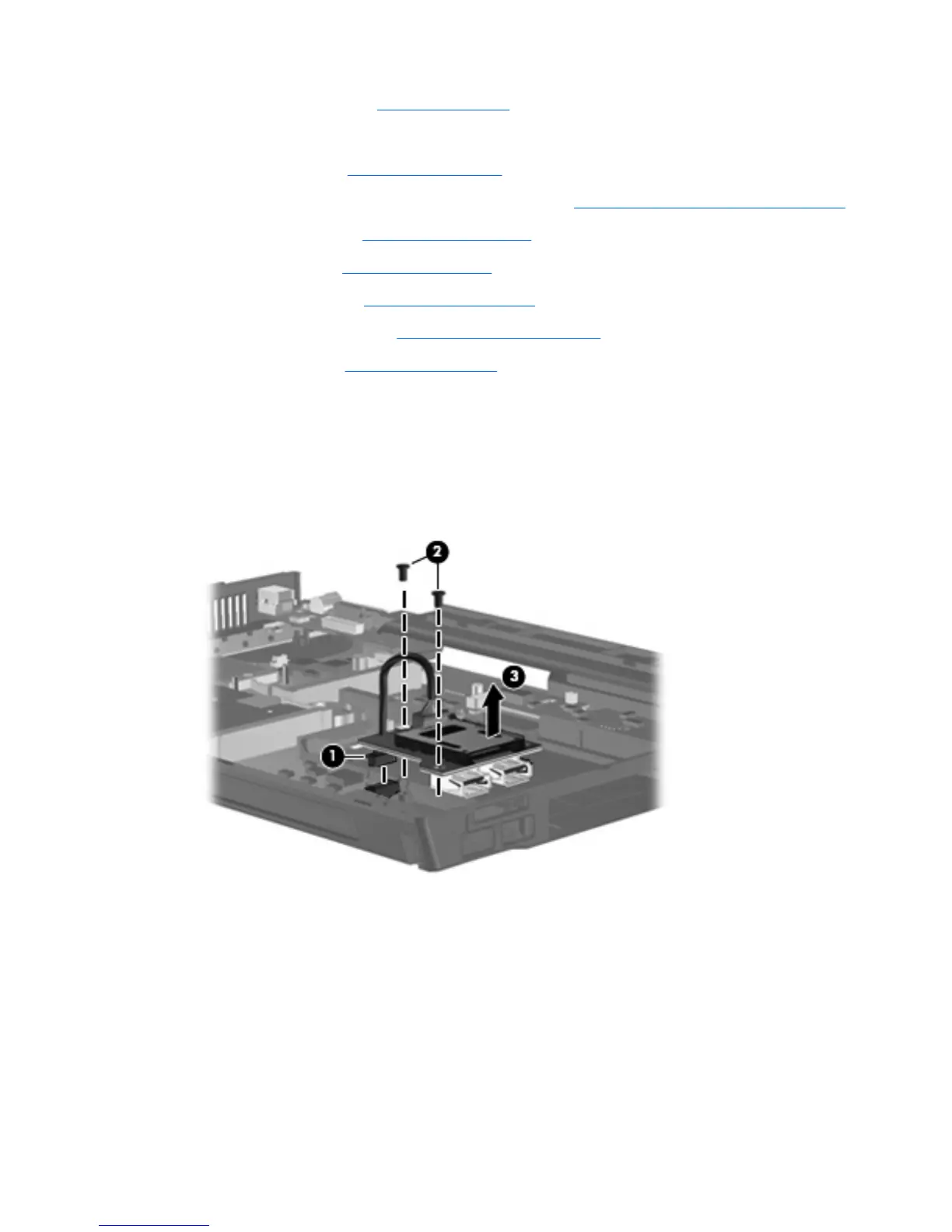

Remove the Media Card Reader/USB connector board:

1. Disconnect the Media Card Reader/USB connector board cable (1) from the system board.

2. Remove the two Phillips PM2.5×5.0 screws (2) that secure the Media Card Reader/USB connector

board to the computer.

3. Lift the Media Card Reader/USB connector board (3) straight up and remove it.

Reverse this procedure to install the Media Card Reader/USB connector board.

Component replacement procedures 85
