HP COMPAQ 6510B

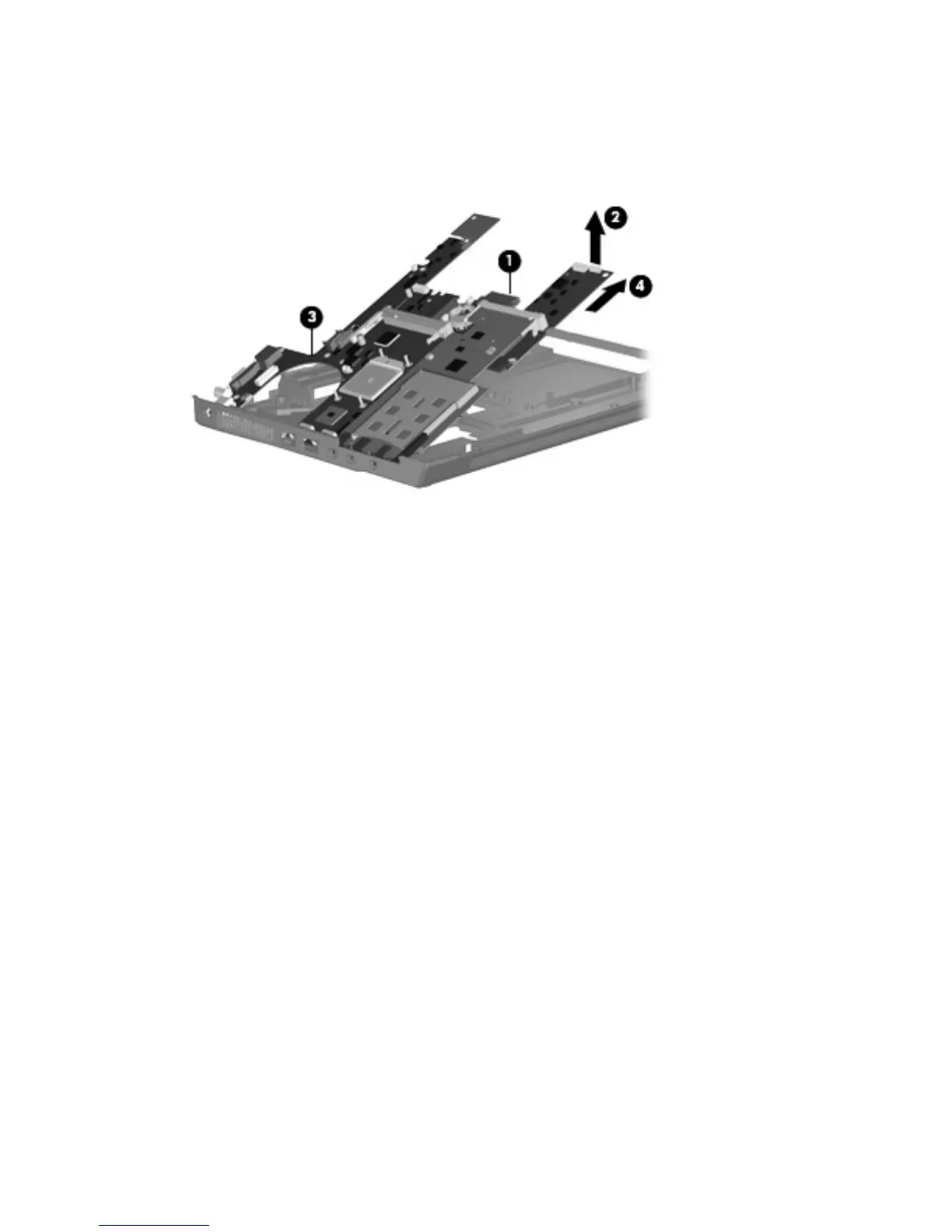

5. Use the optical drive connector (1) to lift the right side of the system board (2) until the rear left
corner of the system board (3) clears the base enclosure.
6. Remove the system board (4) by pulling it away from the top cover at an angle until it clears the
top cover
Reverse the preceding procedure to install the system board.
88 Chapter 4 Removal and replacement procedures
