Hardware Reference Guide www.hp.com 2–21
Hardware Upgrades
✎
If you are installing a third optional drive in the bottom 5.25-inch
drive bay, you must also install an expansion card with an IDE
controller and data cable (not supplied) because the secondary IDE
controller supports only two drives.
6. Connect the drive power 1 and signal 2 cables and, if it is an
optical drive and if analog audio is preferred to digital audio,
connect the audio cable 3. The other end of the audio cable
should be connected to the embedded audio connector on the
system board.

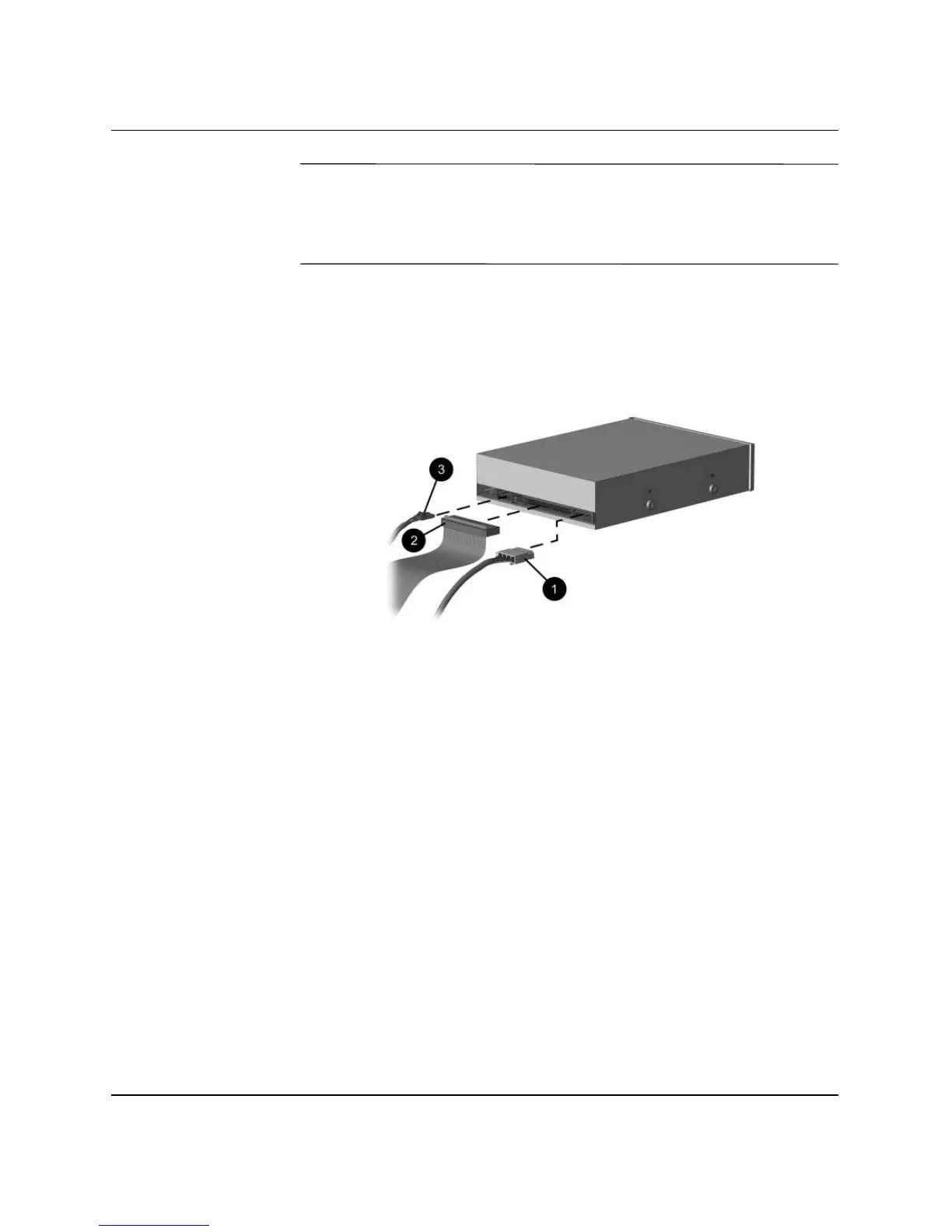

Connecting the Drive Cables
7. Remove the appropriate bezel blank from the subpanel inside the
front bezel. See the “Removing Bezel Blanks” section for more
information.
8. Replace the computer access panel and front bezel.
9. If you normally lock the Smart Cover Lock, use Computer Setup
to relock the lock and enable the Smart Cover Sensor.
10. Reconfigure the computer, if necessary. Refer to the Computer
Setup (F10) Utility Guide on the Documentation Library CD for
instructions about using Computer Setup.
