HP Compaq dc7700 MT User Manual

Rear Panel Components

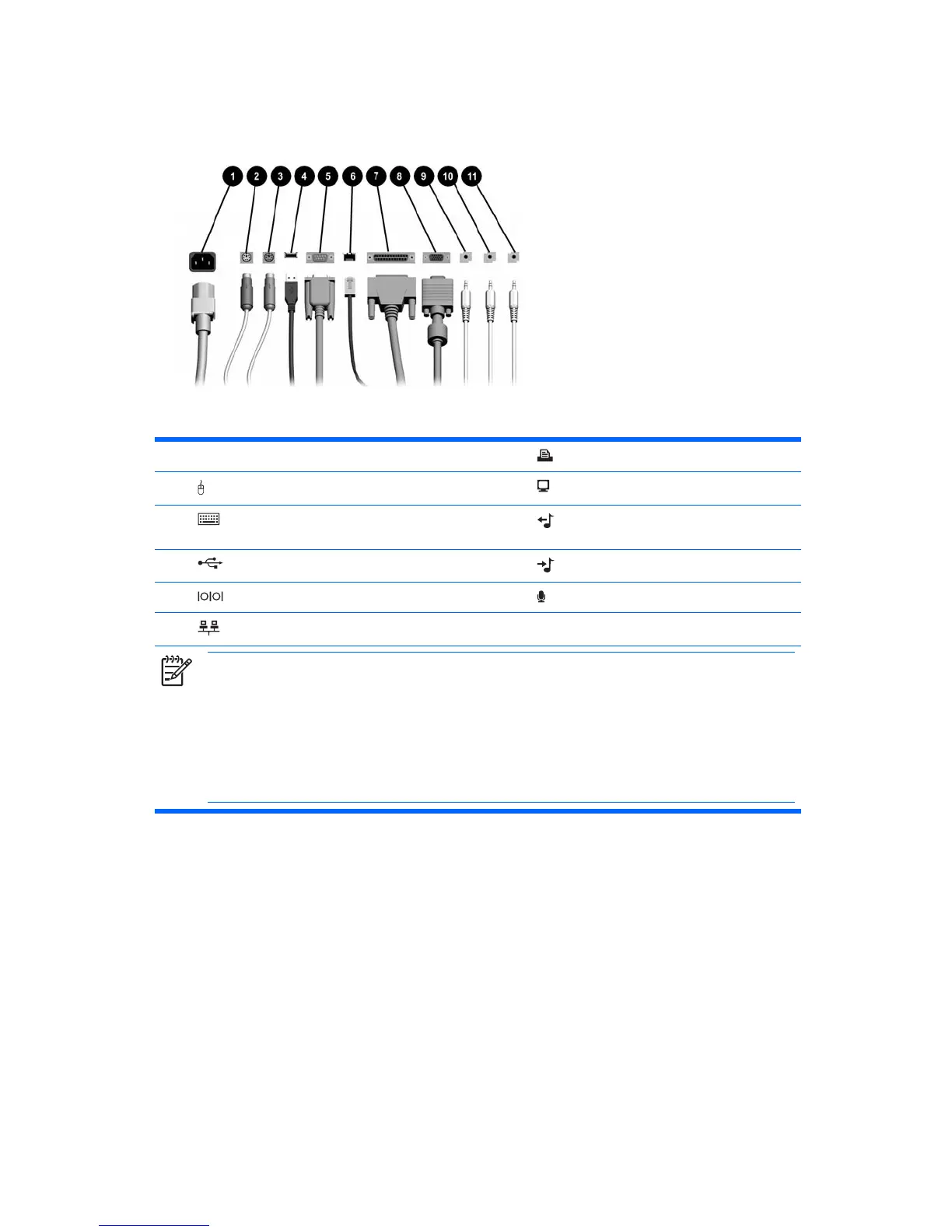

Table 1-3 Rear Panel Components
1 Power Cord Connector 7 Parallel Connector
2 PS/2 Mouse Connector (green) 8 Monitor Connector
3 PS/2 Keyboard Connector (purple) 9 Line-Out Connector for powered audio
devices (green)
4 Universal Serial Bus (USB) 10 Line-In Audio Connector (blue)
5 Serial Connector 11 Microphone Connector (pink)
6 RJ-45 Network Connector
NOTE Arrangement and number of connectors may vary by model.
The monitor connector on the system board is inactive when a PCI Express graphics card is installed in the
computer.
If a PCI graphics card is installed, the connectors on the card and the system board may be used at the same
time. Some settings may need to be changed in Computer Setup to use both connectors. For information
about Boot Order, refer to the Computer Setup (F10) Utility Guide on the Documentation and Diagnostics
CD.
4 Chapter 1 Product Features ENWW

HP Compaq dc7700 MT Specifications

General

Chipset	Intel Q965 Express
Memory	Up to 8 GB DDR2 SDRAM
Expansion Slots	1 PCI Express x16, 1 PCI Express x1, 2 PCI
Processor	Intel Core 2 Duo, Intel Pentium D, Intel Pentium 4
Storage	80GB to 500GB SATA
Graphics	Intel Graphics Media Accelerator 3000
Optical Drive	DVD-ROM, DVD+/-RW
Ports	USB 2.0, serial, parallel, VGA, audio in/out
Form Factor	Microtower
Audio	Integrated High Definition Audio
Network	Integrated 10/100/1000 Ethernet
Operating System	Windows XP, Windows Vista
Power Supply	365W
