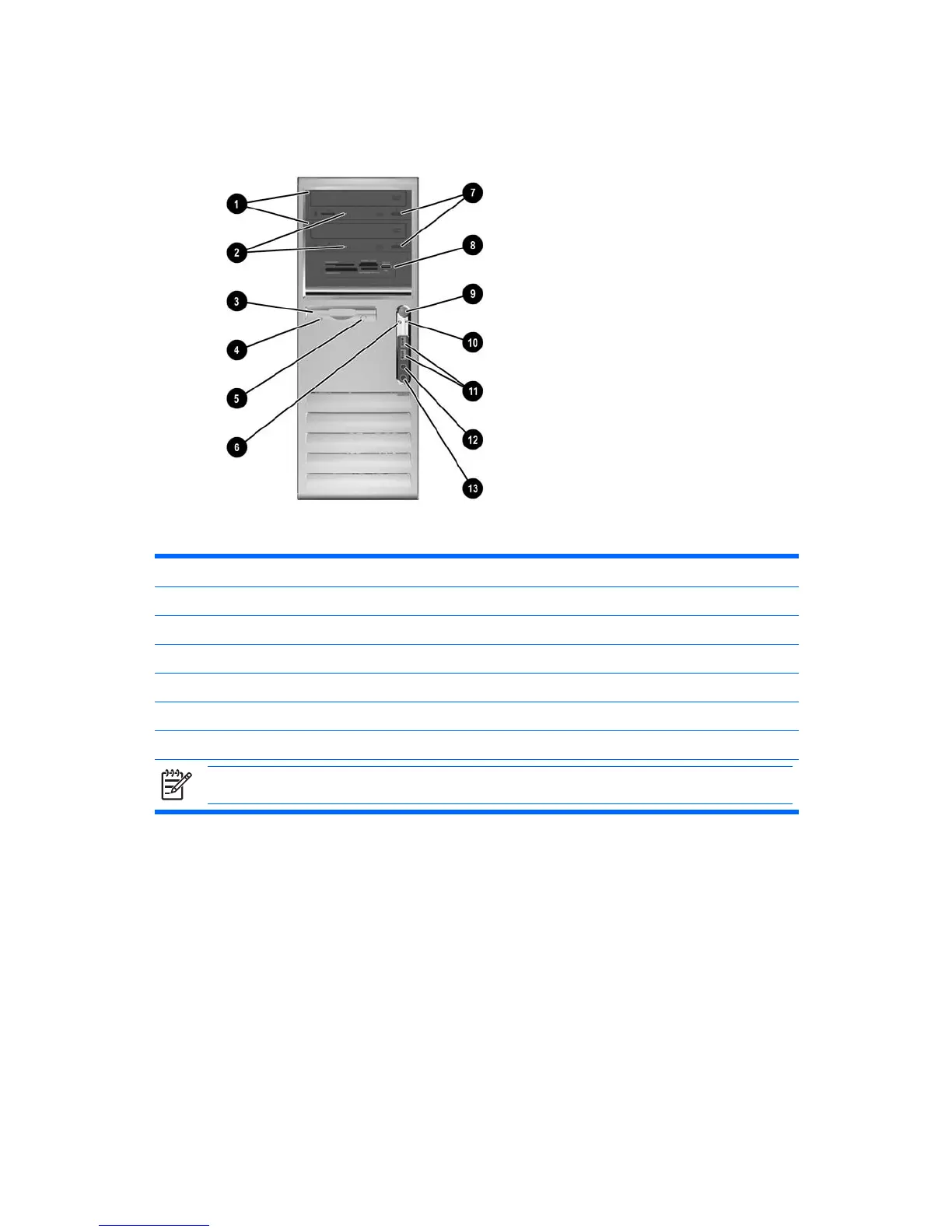

Front Panel Components
Drive configuration may vary by model.
Table 1-1 Front Panel Components
1 5.25-inch Optical Drives 8 5.25-inch Media Card Reader (optional)
2 Optical Drive Activity Lights 9 Dual-State Power Button
3 3.5-inch Diskette Drive (optional)
1
10 Power On Light
4 Diskette Drive Activity Light (optional) 11 USB (Universal Serial Bus) Ports
5 Diskette Eject Button (optional) 12 Headphone Connector
6 Hard Drive Activity Light 13 Microphone Connector
7 Optical Drive Eject Buttons
NOTE An optical drive is a CD-ROM, DVD+R/RW, or CD-RW/DVD Combo drive.
1
Some models are configured with a media card reader in the external 3.5-inch drive bay. Other models have a bezel
blank covering this bay.
