HP Compaq dc7700 MT User Manual

Replacing the Computer Access Panel
1. Lay the computer down on its large base for greater stability.
2. Align the tabs on the access panel with the slots on the chassis and push down on the access
panel while sliding it forward until it locks into place.

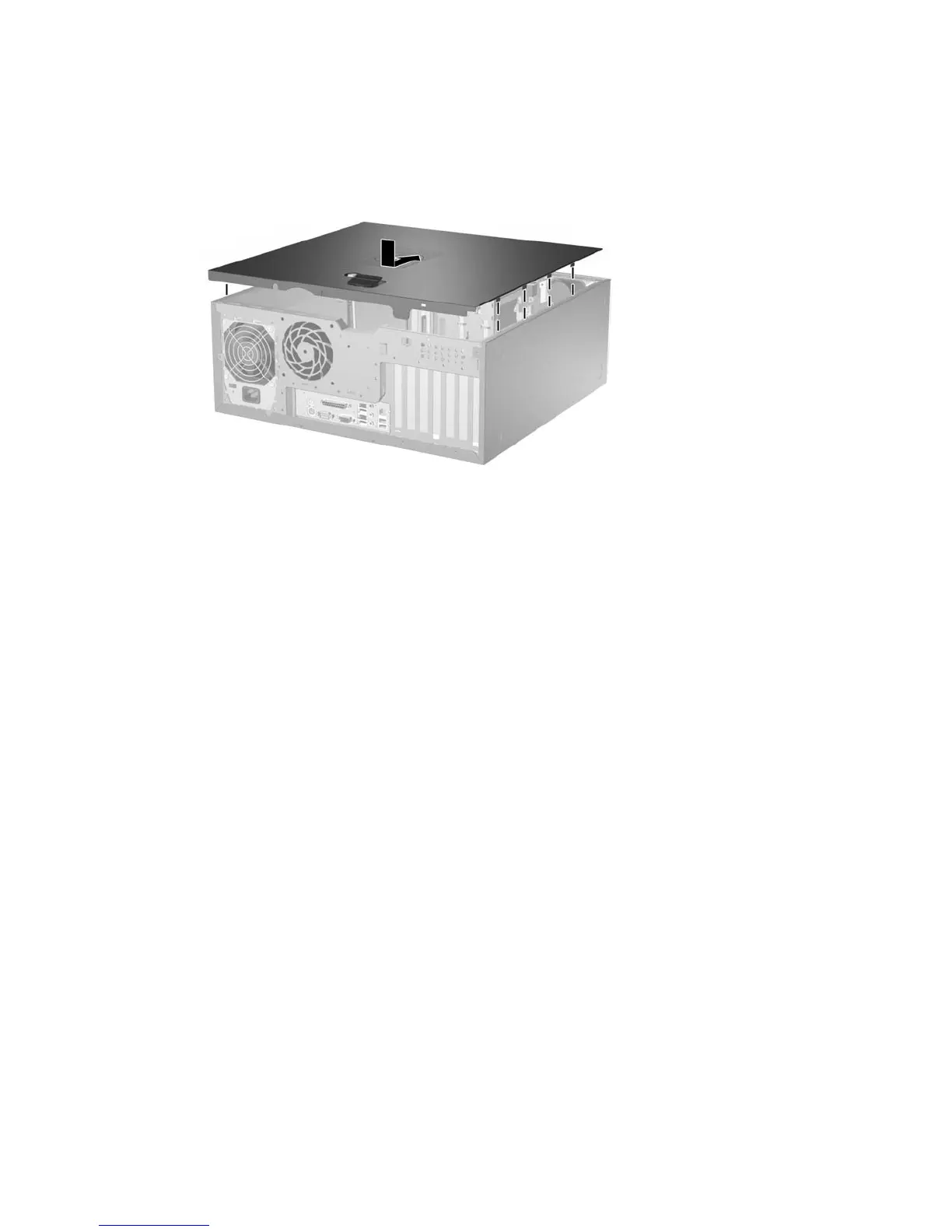

Figure 2-3 Replacing the Computer Access Panel
ENWW Replacing the Computer Access Panel 13

HP Compaq dc7700 MT Specifications

General

Chipset	Intel Q965 Express
Memory	Up to 8 GB DDR2 SDRAM
Expansion Slots	1 PCI Express x16, 1 PCI Express x1, 2 PCI
Processor	Intel Core 2 Duo, Intel Pentium D, Intel Pentium 4
Storage	80GB to 500GB SATA
Graphics	Intel Graphics Media Accelerator 3000
Optical Drive	DVD-ROM, DVD+/-RW
Ports	USB 2.0, serial, parallel, VGA, audio in/out
Form Factor	Microtower
Audio	Integrated High Definition Audio
Network	Integrated 10/100/1000 Ethernet
Operating System	Windows XP, Windows Vista
Power Supply	365W
