HP Compaq dc7700 MT User Manual

b. To insert the new battery, slide one edge of the replacement battery under the holder’s lip with
the positive side up. Push the other edge down until the clamp snaps over the other edge of
the battery (2).

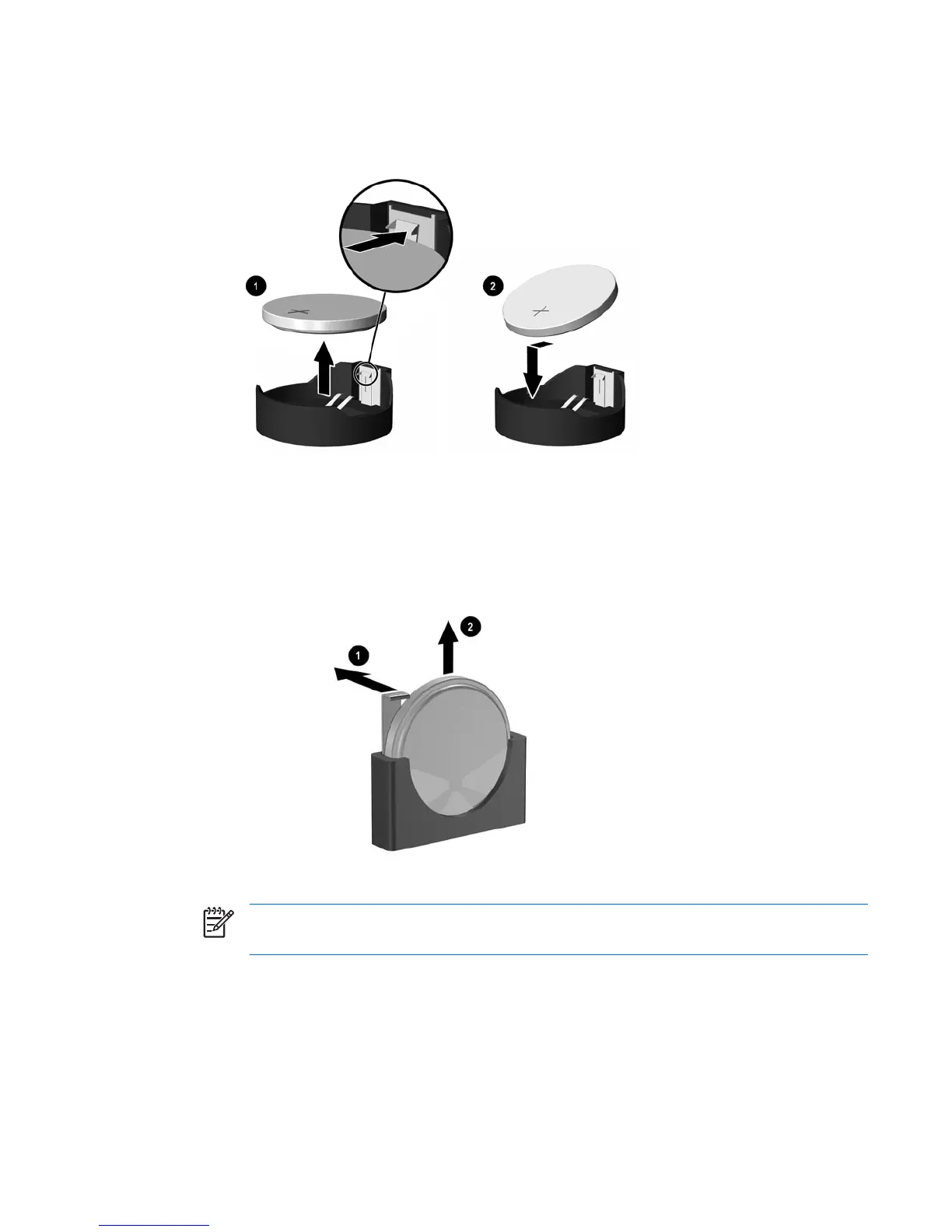

Figure B-2 Removing and Replacing a Coin Cell Battery (Type 2)
Type 3
a. Pull back on the clip (1) that is holding the battery in place, and remove the battery (2).
b. Insert the new battery and position the clip back into place.
Figure B-3 Removing a Coin Cell Battery (Type 3)
NOTE After the battery has been replaced, use the following steps to complete this
procedure.
8. Replace the computer access panel.
9. Plug in the computer and turn on power to the computer.
10. Reset the date and time, your passwords, and any special system setups using Computer Setup.
Refer to the Computer Setup (F10) Utility Guide on the Documentation and Diagnostics CD.
11. Lock any security devices that were disengaged when the computer access panel was removed.
ENWW 45

HP Compaq dc7700 MT Specifications

General

Chipset	Intel Q965 Express
Memory	Up to 8 GB DDR2 SDRAM
Expansion Slots	1 PCI Express x16, 1 PCI Express x1, 2 PCI
Processor	Intel Core 2 Duo, Intel Pentium D, Intel Pentium 4
Storage	80GB to 500GB SATA
Graphics	Intel Graphics Media Accelerator 3000
Optical Drive	DVD-ROM, DVD+/-RW
Ports	USB 2.0, serial, parallel, VGA, audio in/out
Form Factor	Microtower
Audio	Integrated High Definition Audio
Network	Integrated 10/100/1000 Ethernet
Operating System	Windows XP, Windows Vista
Power Supply	365W
