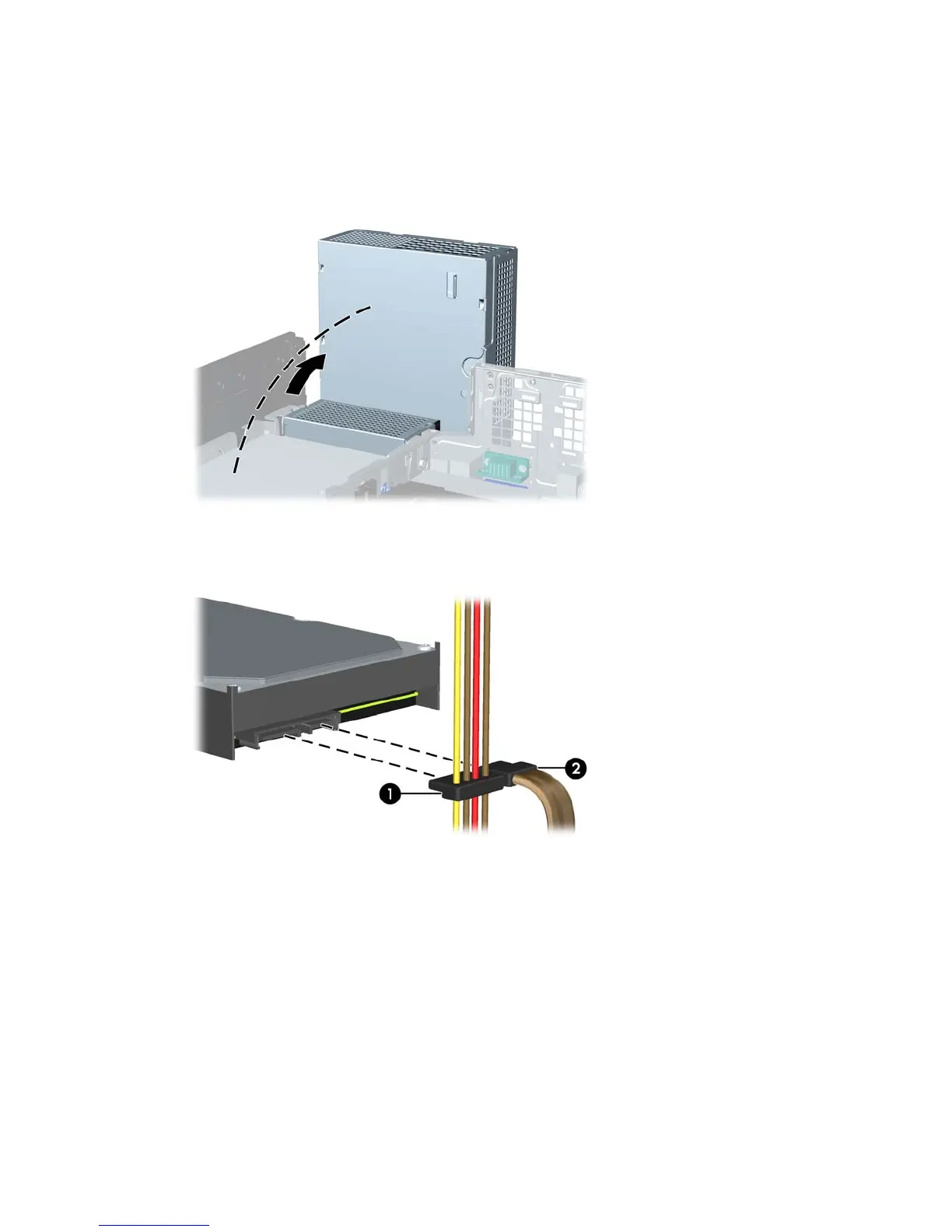

8. Rotate the power supply to its upright position. The hard drive is located beneath the power

supply.

Figure 4-34 Raising the Power Supply

9. Disconnect the power cable (1) and data cable (2) from the back of the hard drive.

Figure 4-35 Disconnecting the Hard Drive Cables

118 Chapter 4 Small Form Factor (SFF) Hardware Upgrades

Questions and Answers:

Need help?

Do you have a question about the HP Compaq Elite 8300 Series and is the answer not in the manual?

General

Chipset	Intel Q77 Express
Memory	Up to 32 GB DDR3
Processor	Intel Core i3/i5/i7
Storage	SSD
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM, DVD+/-RW
Operating System	Windows 7, Windows 8, FreeDOS
Form Factor	Small Form Factor (SFF)
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Ports	USB 2.0, USB 3.0, DisplayPort, VGA, Serial, PS/2, Audio
