HP Compaq Elite 8300 Series User Manual

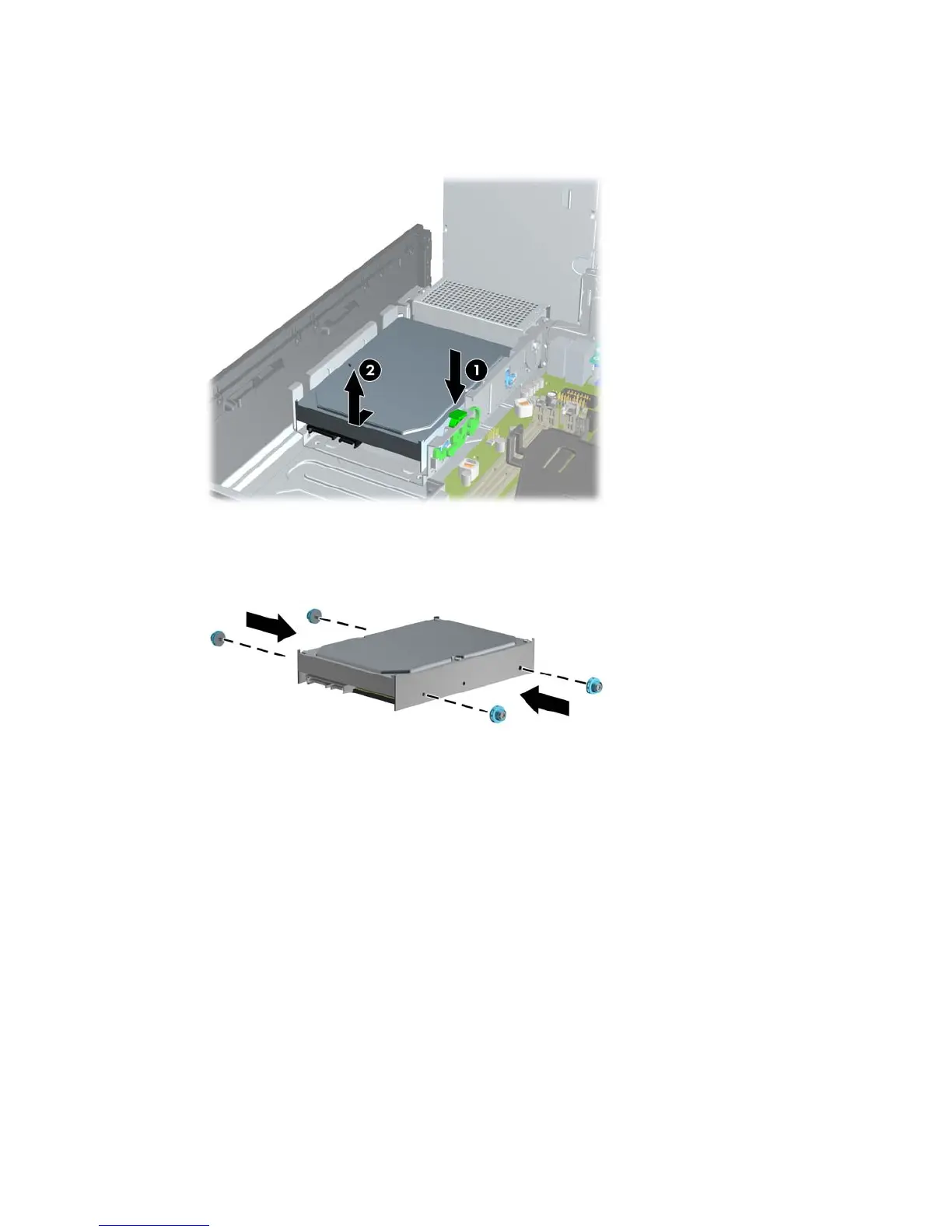

10. Press down on the green release latch next to the hard drive (1). While holding the latch down,
slide the drive forward until it stops, then lift the drive up and out of the bay (2).
Figure 4-36 Removing the Hard Drive
11. To install a hard drive, you must transfer the silver and blue isolation mounting guide screws
from the old hard drive to the new hard drive.
Figure 4-37 Installing Hard Drive Guide Screws
Installing and Removing Drives 119

HP Compaq Elite 8300 Series Specifications

General

Chipset	Intel Q77 Express
Memory	Up to 32 GB DDR3
Processor	Intel Core i3/i5/i7
Storage	SSD
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM, DVD+/-RW
Operating System	Windows 7, Windows 8, FreeDOS
Form Factor	Small Form Factor (SFF)
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Ports	USB 2.0, USB 3.0, DisplayPort, VGA, Serial, PS/2, Audio
