HP Compaq Elite 8300 Series User Manual

12. Align the guide screws with the slots on the chassis drive cage, press the hard drive down into
the bay, then slide it back until it stops and locks in place.

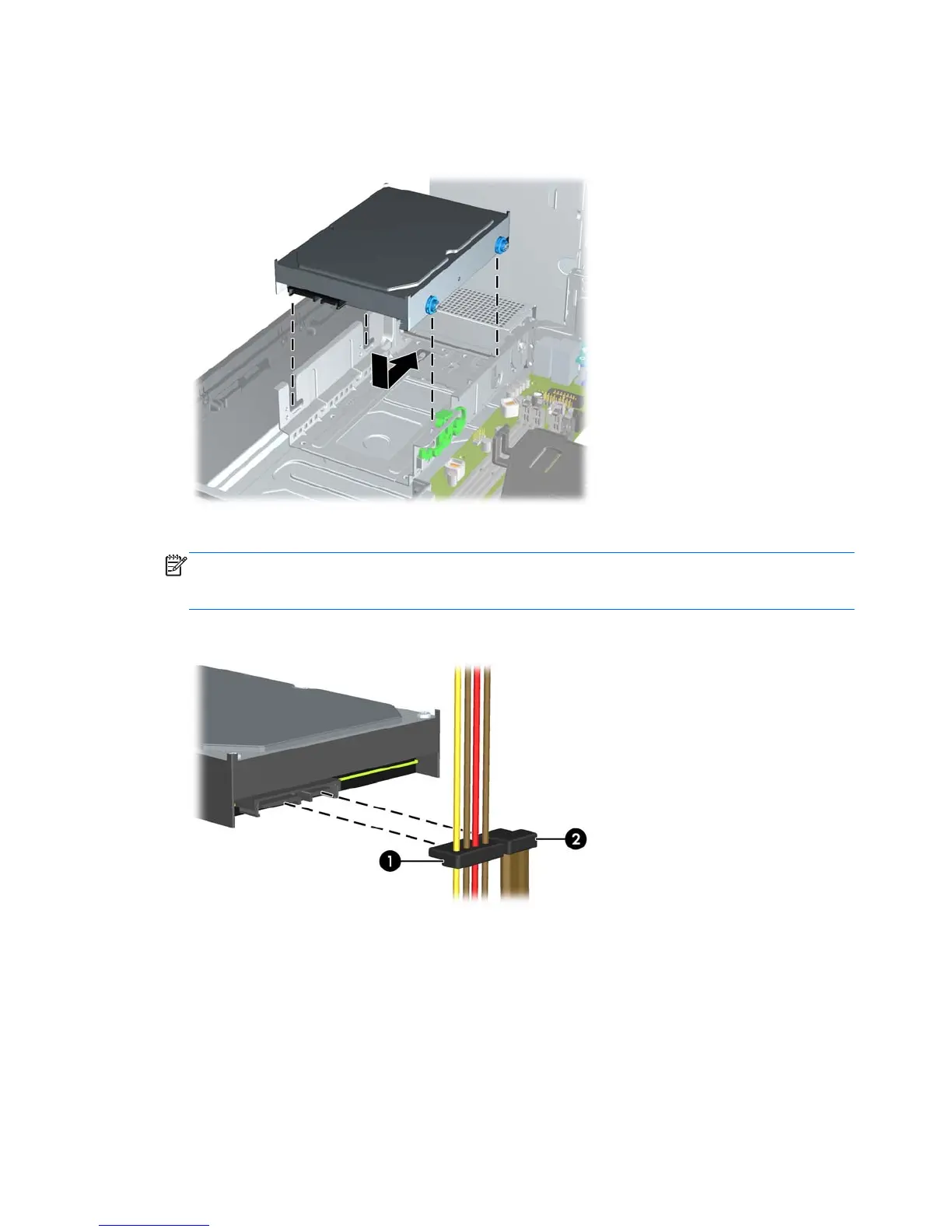

Figure 4-38 Installing the Hard Drive
13. Connect the power cable (1) and data cable (2) to the back of the hard drive.
NOTE: If the system has only one SATA hard drive, the data cable must be connected to the
dark blue connector labeled SATA0 on the system board to avoid any hard drive performance
problems.
Figure 4-39 Connecting the Hard Drive Cables
14. Rotate the drive cage for internal drives and the power supply down to their normal positions.
15. Replace the access panel.
16. If the computer was on a stand, replace the stand.
17. Reconnect the power cord and turn on the computer.
18. Lock any security devices that were disengaged when the access panel was removed.
120 Chapter 4 Small Form Factor (SFF) Hardware Upgrades

HP Compaq Elite 8300 Series Specifications

General

Chipset	Intel Q77 Express
Memory	Up to 32 GB DDR3
Processor	Intel Core i3/i5/i7
Storage	SSD
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM, DVD+/-RW
Operating System	Windows 7, Windows 8, FreeDOS
Form Factor	Small Form Factor (SFF)
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Ports	USB 2.0, USB 3.0, DisplayPort, VGA, Serial, PS/2, Audio
