7. Remove the drive from the drive bay as follows:
● To remove a 5.25-inch drive in the desktop configuration, press down on the yellow
drivelock mechanism (1) and slide the drive from the drive bay (2).
CAUTION: When the yellow drivelock is pressed, all the 5.25-inch drives are released so
do not tilt the unit and allow the drives to fall out.

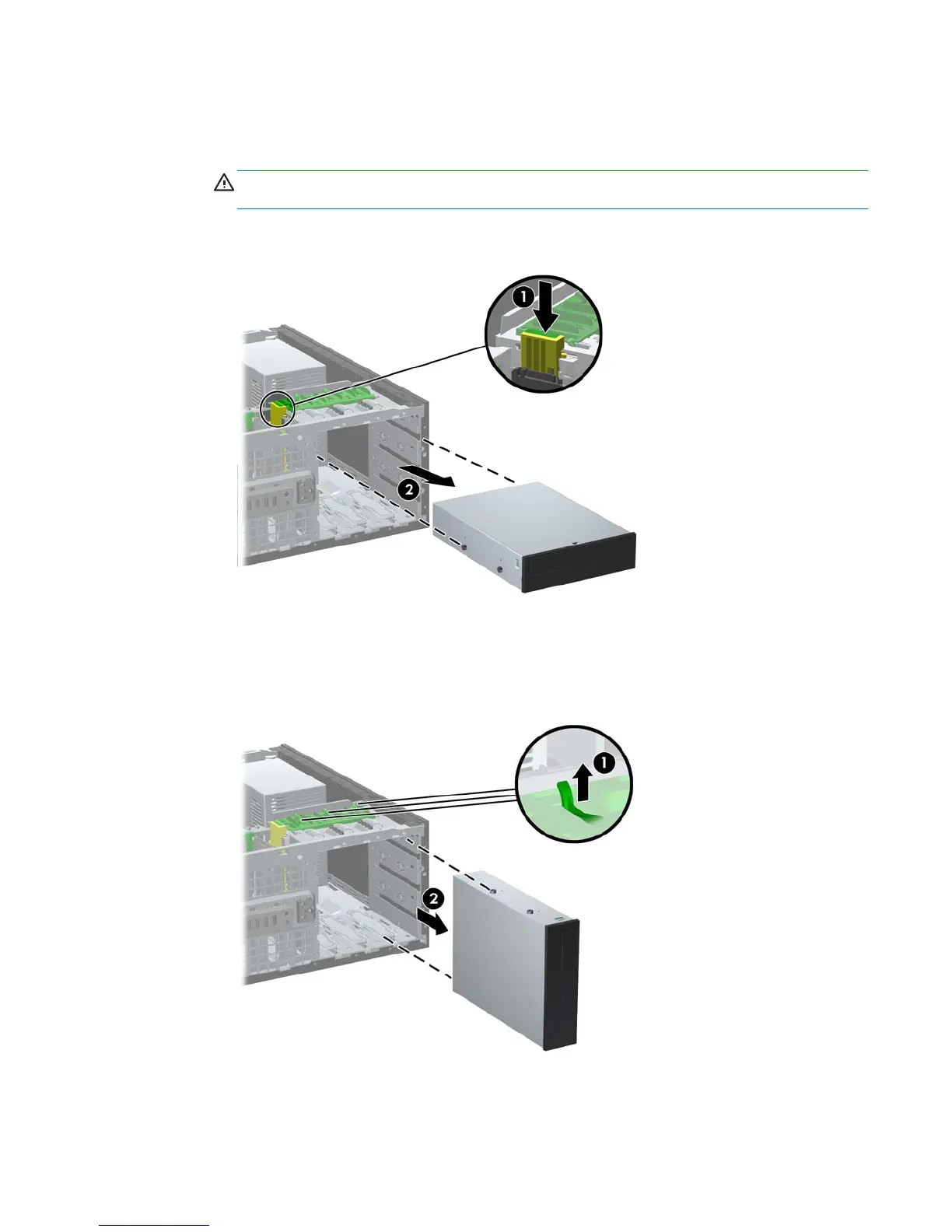

Figure 2-17 Removing a 5.25-inch Drive in the Desktop Configuration (Optical Drive
shown)
●
To remove a 5.25-inch drive in the minitower configuration, pull up on the green drivelock
mechanism (1) for that specific drive and slide the drive from the drive bay (2).
Figure 2-18 Removing a 5.25-inch Drive in the Minitower Configuration (Optical Drive
shown)
Removing a Drive from a Drive Bay 35

HP Compaq Elite 8300 Series Specifications

General

Chipset	Intel Q77 Express
Memory	Up to 32 GB DDR3
Processor	Intel Core i3/i5/i7
Storage	SSD
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM, DVD+/-RW
Operating System	Windows 7, Windows 8, FreeDOS
Form Factor	Small Form Factor (SFF)
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Ports	USB 2.0, USB 3.0, DisplayPort, VGA, Serial, PS/2, Audio
