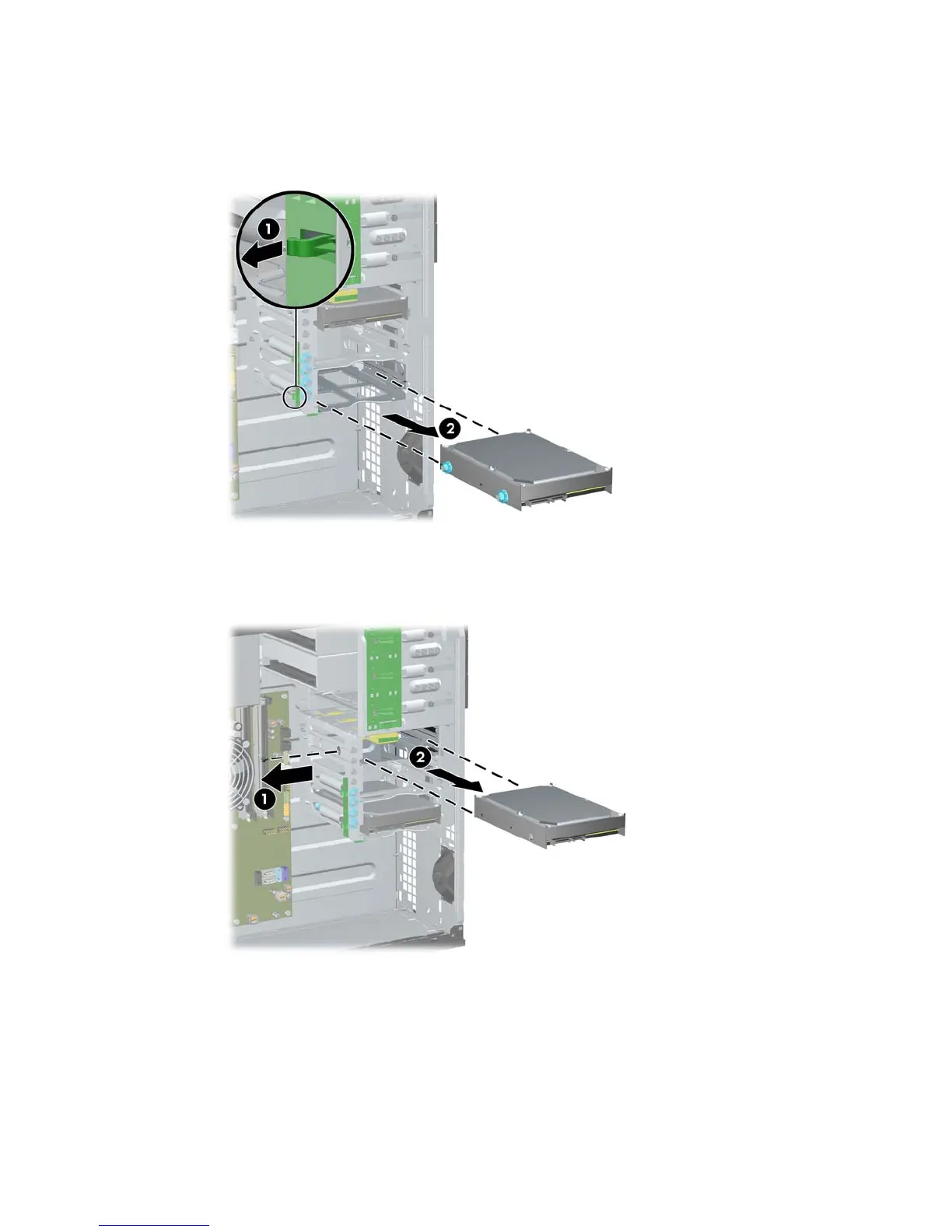

To remove a hard drive from one of the two lower internal hard drive bays, pull up on the
green hard drive drivelock mechanism (1) for that drive and slide the drive from the drive
bay (2).
Figure 2-19 Removing a Hard Drive from the Lower Two Bays
●
To remove a hard drive from the upper internal hard drive bay, remove the screw on the
side of the bay that secures the drive in place (1), then slide the drive out of the bay (2).
Figure 2-20 Removing a Hard Drive from the Upper Bay
36 Chapter 2 Convertible Minitower (CMT) Hardware Upgrades

HP Compaq Elite 8300 Series Specifications

General

Chipset	Intel Q77 Express
Memory	Up to 32 GB DDR3
Processor	Intel Core i3/i5/i7
Storage	SSD
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM, DVD+/-RW
Operating System	Windows 7, Windows 8, FreeDOS
Form Factor	Small Form Factor (SFF)
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Ports	USB 2.0, USB 3.0, DisplayPort, VGA, Serial, PS/2, Audio
