3. Remove the two Phillips screws (1) that secure the board to the system board.

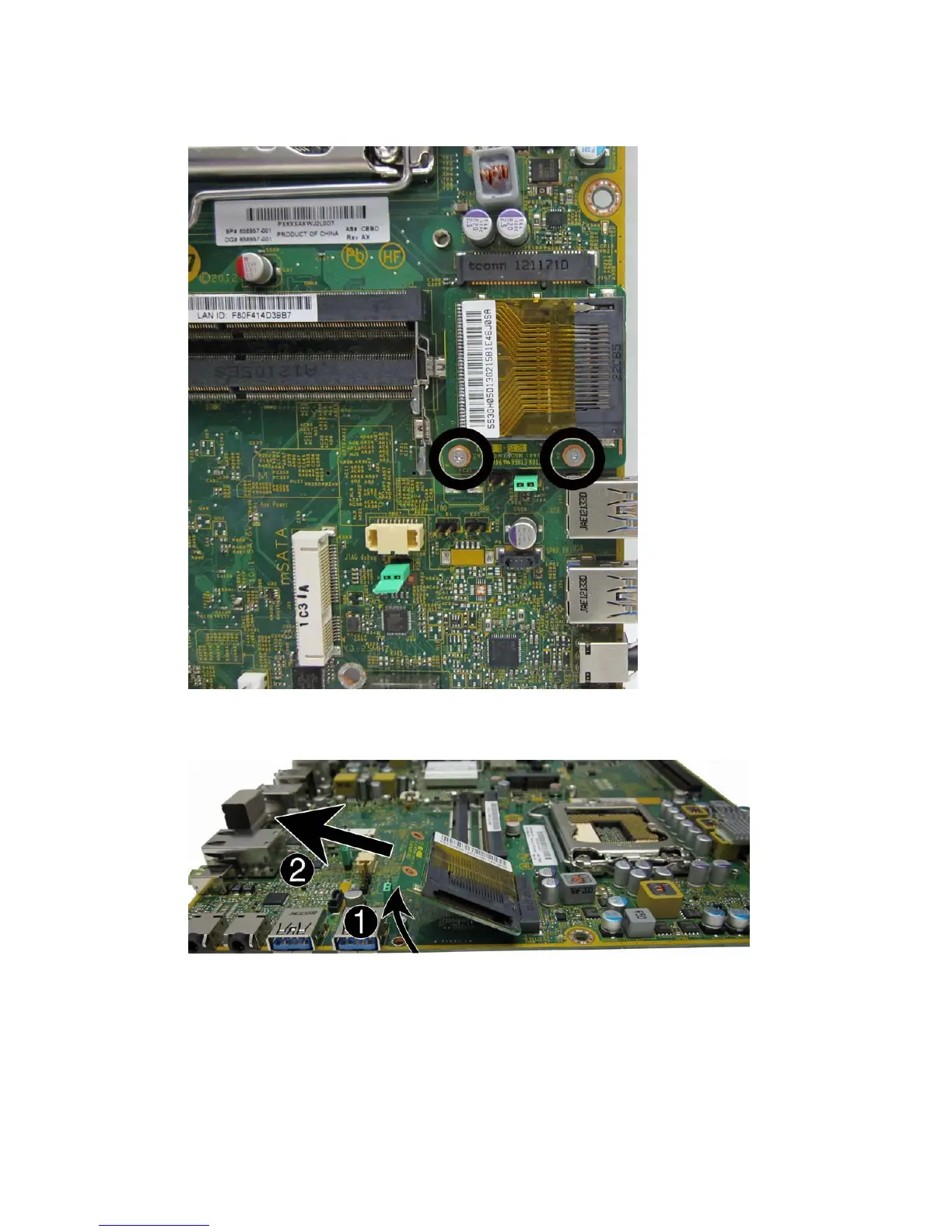

Figure 7-68 Removing the card reader board screws
4. Lift the board to a 45-degree angle (1), and then pull it away to remove it from the socket (2).
Figure 7-69 Removing the card reader board
To install the card reader board, reverse the removal procedures.
96 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
