HP Compaq Elite 8300 User Manual

◦
Right 4 screws
◦
Bottom: 2 screw

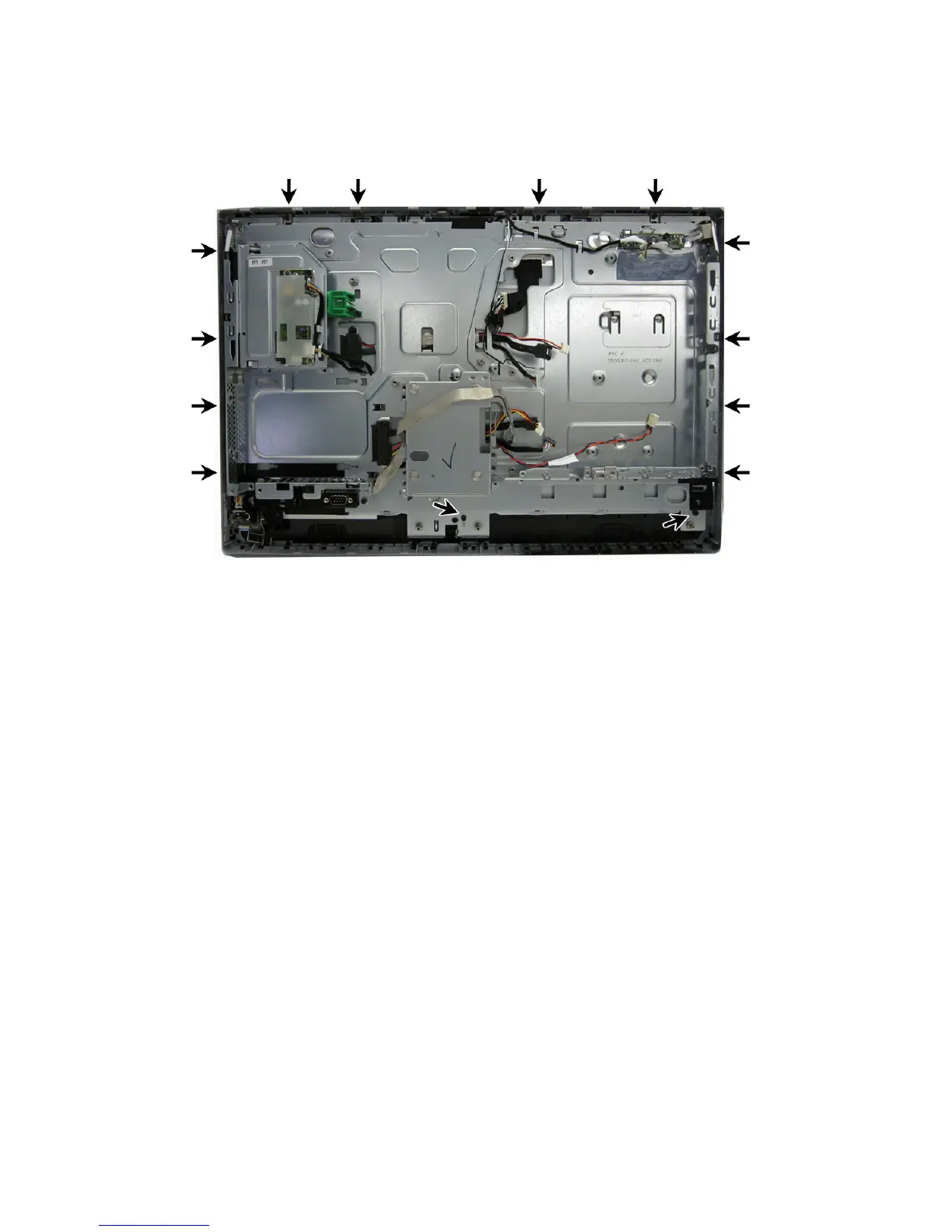

Figure 7-75 Front bezel assembly screw locations – 8300 models
13. Lift the bracket from the bezel.
To install the front bezel, reverse the removal procedures.
102 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

HP Compaq Elite 8300 Specifications

General

Operating temperature (T-T)	10 - 35 °C
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
HDD size	3.5 \
Dimensions (WxDxH)	178 x 445 x 448 mm
Microphone in	Yes
HDMI ports quantity	0
PS/2 ports quantity	2
USB 2.0 ports quantity	6
PCI slots	3
Chassis type	Mini-Tower
Product type	PC barebone
Product color	Gray
Audio system	HD
Motherboard chipset	Intel® Q77 Express
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Power supply	320 W
Operating system installed	No
Processor model	-
Processor family	Intel

Weight and Dimensions

Weight	11200 g
