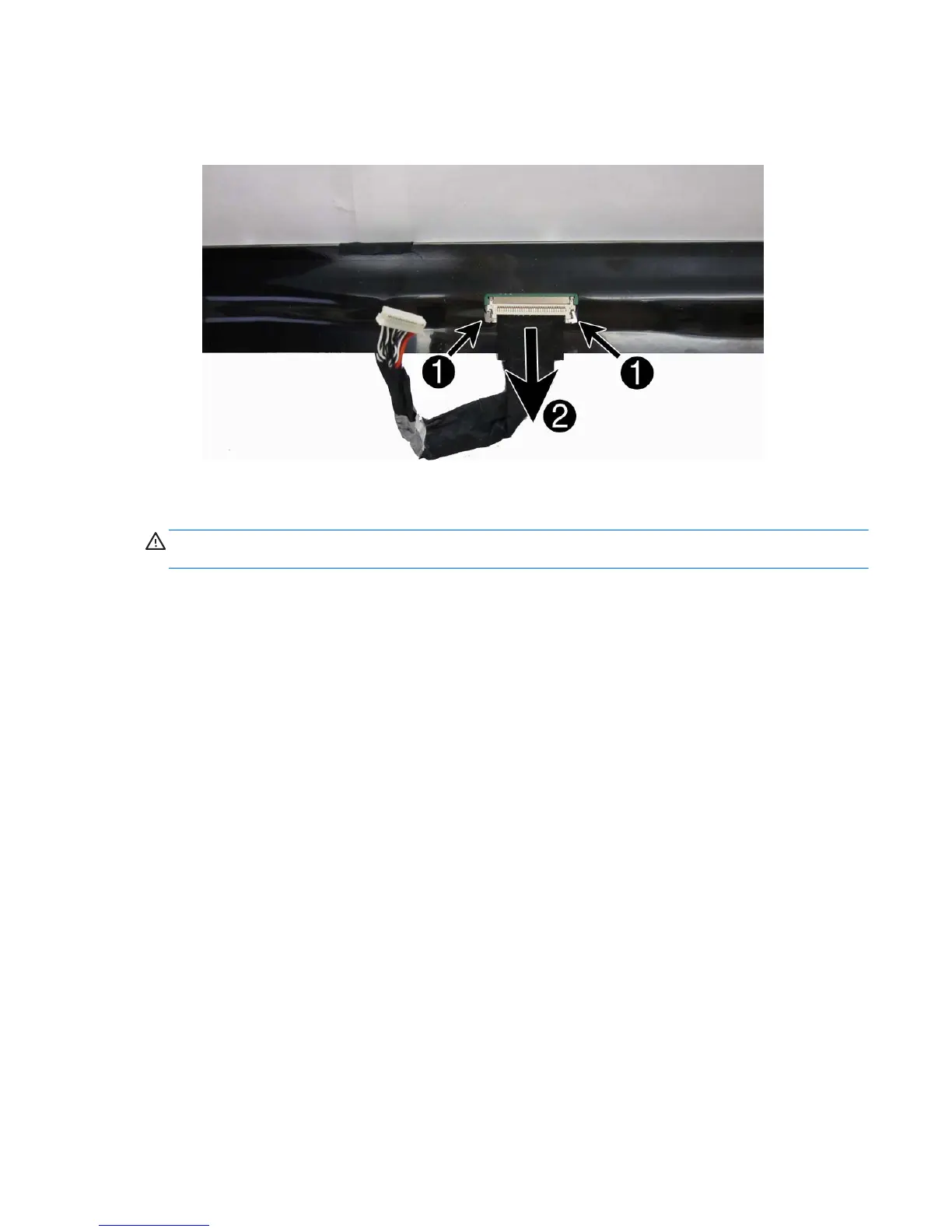

15. Disconnect the display cable from the display panel by pressing in on the tabs (1) on the side of
the connector, and pulling the cable from the connector (2).
Figure 7-84 Disconnecting the display cable from the display panel
Be sure to correctly position the jumpers on the converter board for the installed display panel, as
follows:
CAUTION: Incorrect jumper placement can result in damage to the converter board and display
panel.
●
21.5-inch panel
◦
AUO panel: pins (1)(2)
◦
CMI panel: pins (3)(4)
◦
LG panel: pins (7)(8)
●
23.0-inch panel
◦
CMI panel: pins (5)(6)
◦
LG panel: pins (9)(10)
◦
Samsung panel: pins (11)(12)
Display panel 109

HP Compaq Elite 8300 Specifications

General

Operating temperature (T-T)	10 - 35 °C
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
HDD size	3.5 \
Dimensions (WxDxH)	178 x 445 x 448 mm
Microphone in	Yes
HDMI ports quantity	0
PS/2 ports quantity	2
USB 2.0 ports quantity	6
PCI slots	3
Chassis type	Mini-Tower
Product type	PC barebone
Product color	Gray
Audio system	HD
Motherboard chipset	Intel® Q77 Express
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Power supply	320 W
Operating system installed	No
Processor model	-
Processor family	Intel

Weight and Dimensions

Weight	11200 g
