13. Remove the cable from its routing path.

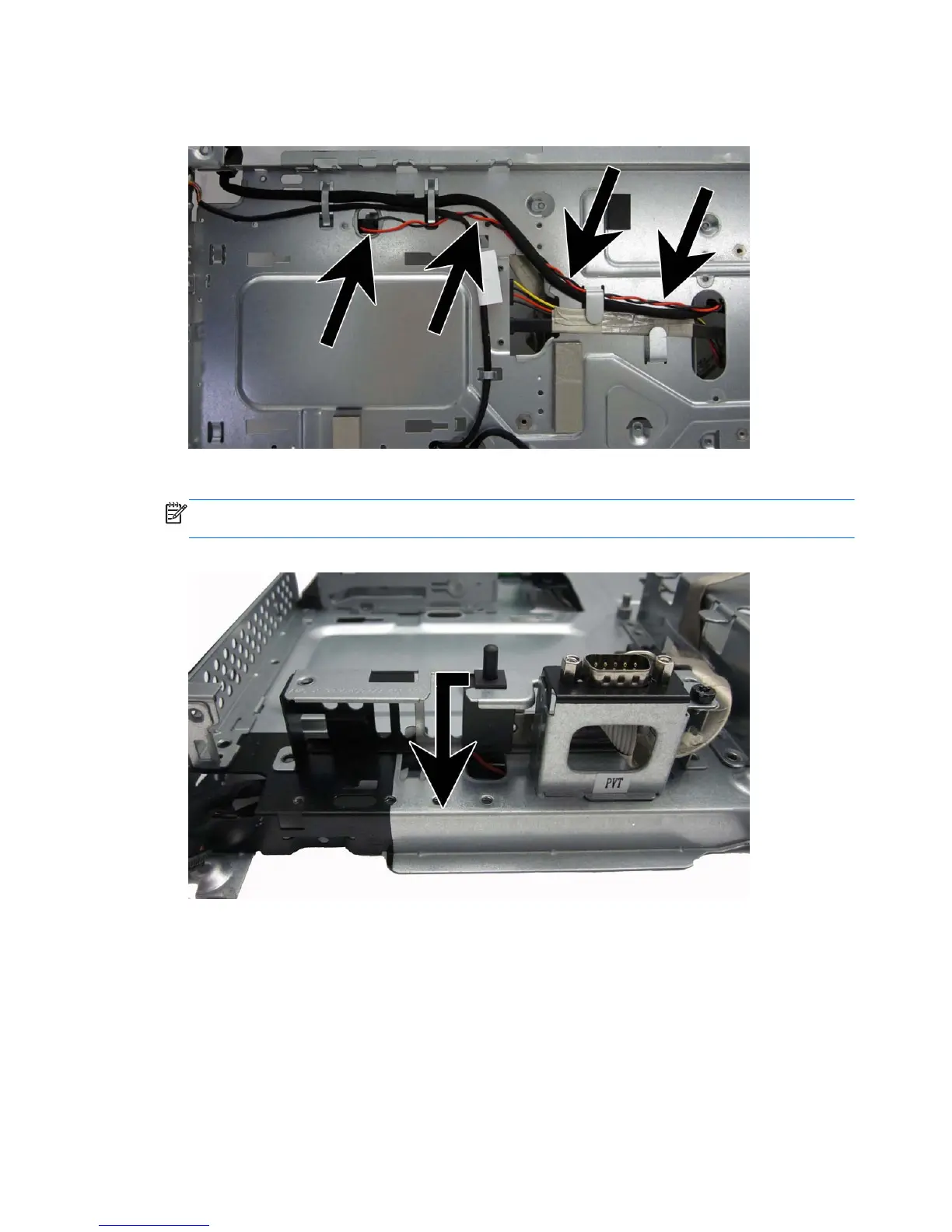

Figure 7-86 Hood sensor cable routing path
14. Slide the hood sensor out of its slot built into the chassis.
NOTE: the hood sensor fits tightly into the slot. Removal may require a flat-blade screwdriver
to help disengage it.
Figure 7-87 Removing the hood sensor
To install the hood sensor, reverse the removal procedures.
112 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
