13. Disconnect the hard drive cables or the optical drive cables from the system board.
NOTE: Be careful not to damage the cable when disconnecting it from the board. Do not pull
on the wires.
14. Remove the connector from the computer.

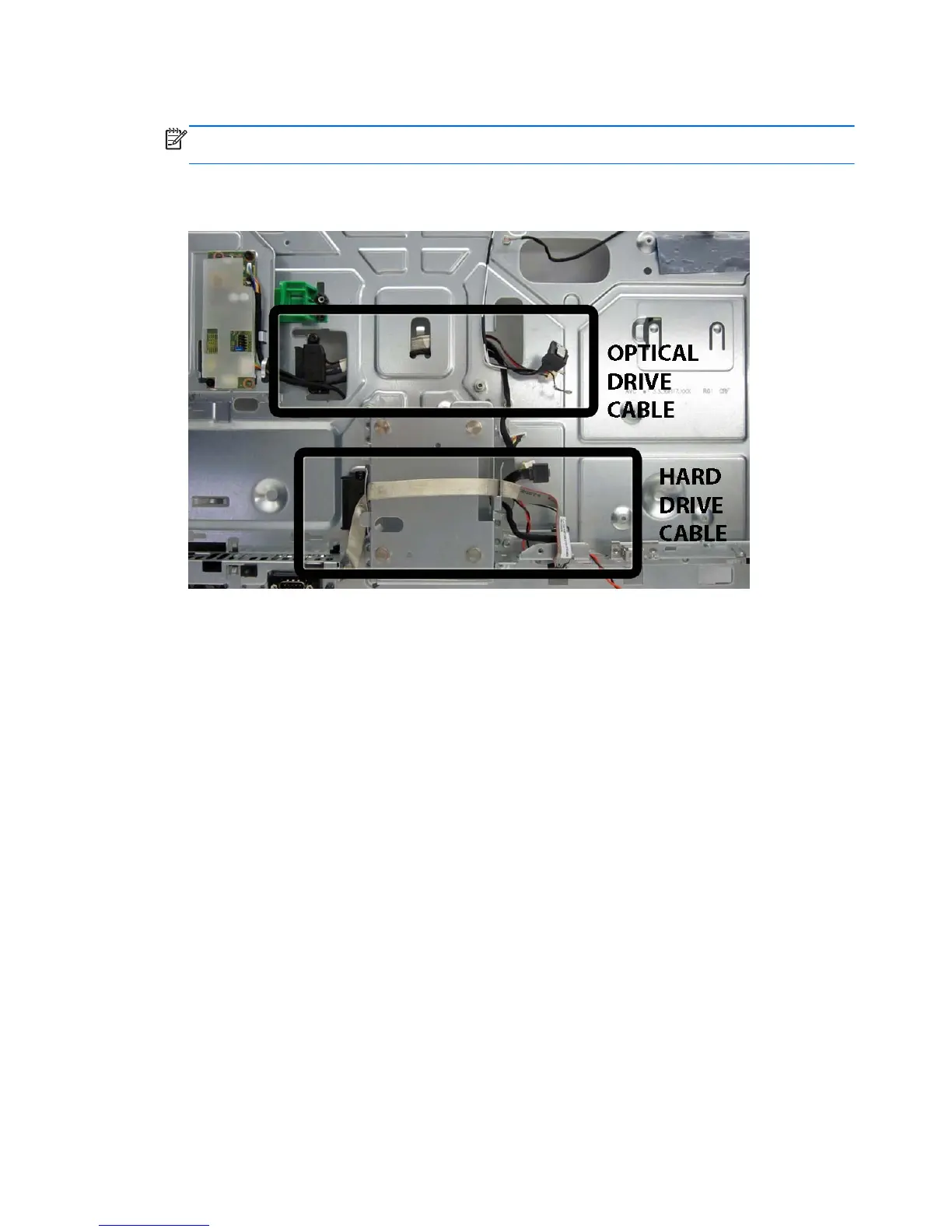

Figure 7-89 Removing the hard drive or optical drive connectors
To install the hard drive or optical drive connector, reverse the removal procedures.
114 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

HP Compaq Elite 8300 Specifications

General

Operating temperature (T-T)	10 - 35 °C
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
HDD size	3.5 \
Dimensions (WxDxH)	178 x 445 x 448 mm
Microphone in	Yes
HDMI ports quantity	0
PS/2 ports quantity	2
USB 2.0 ports quantity	6
PCI slots	3
Chassis type	Mini-Tower
Product type	PC barebone
Product color	Gray
Audio system	HD
Motherboard chipset	Intel® Q77 Express
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Power supply	320 W
Operating system installed	No
Processor model	-
Processor family	Intel

Weight and Dimensions

Weight	11200 g
