3. Pull the latch next to the lower side of the hard disc drive cage away from the cage to release it,
then slide the cage toward the edge of the chassis and lift it out.

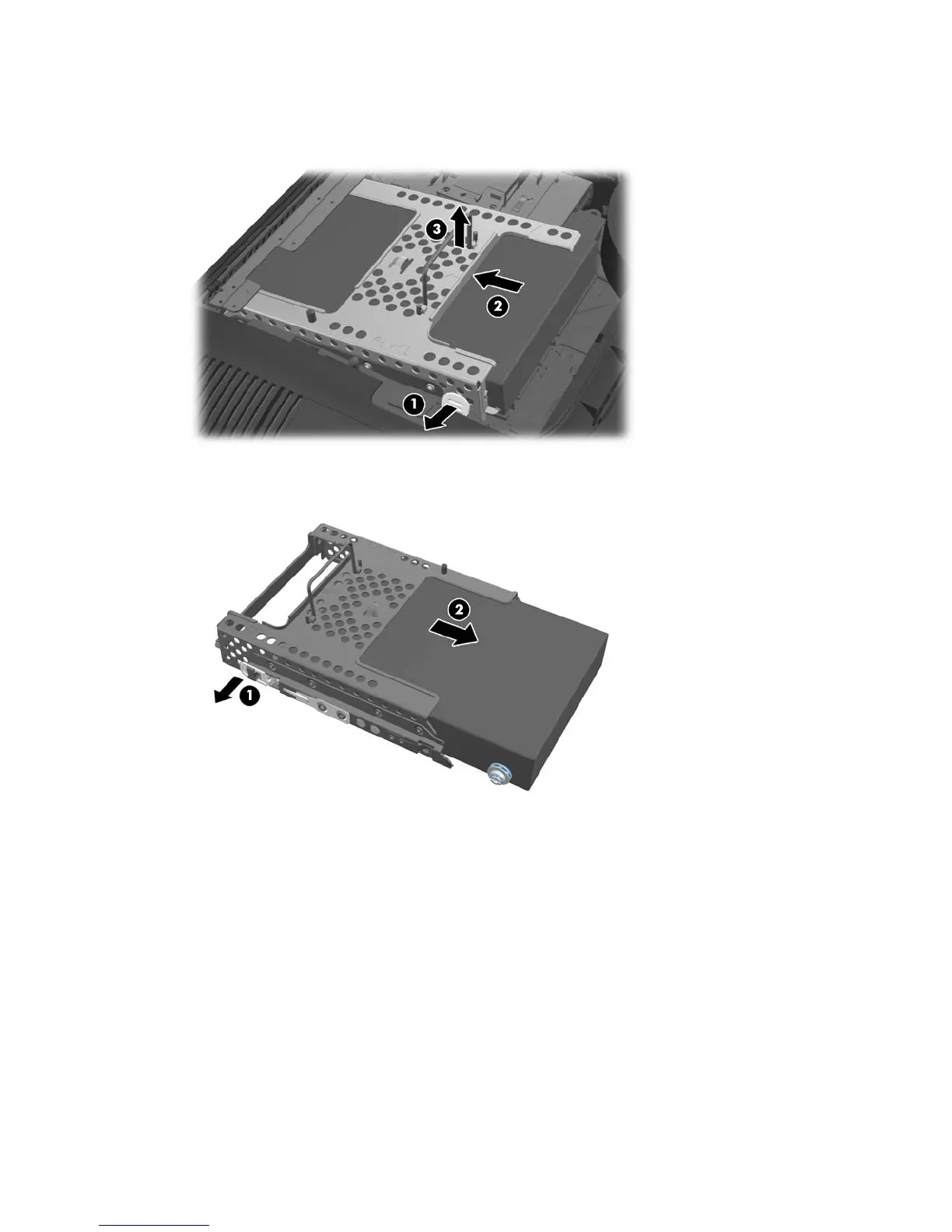

Figure 7-17 Removing the hard disc drive cage
4. Lift the latch on one side of the hard disc drive cage and pull the hard disc drive out of the cage.
Figure 7-18 Removing the hard disc drive from the cage
50 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
