2. Remove the access panel (see Access panel on page 42).
The battery can now be seen on the lower right side of the fan.

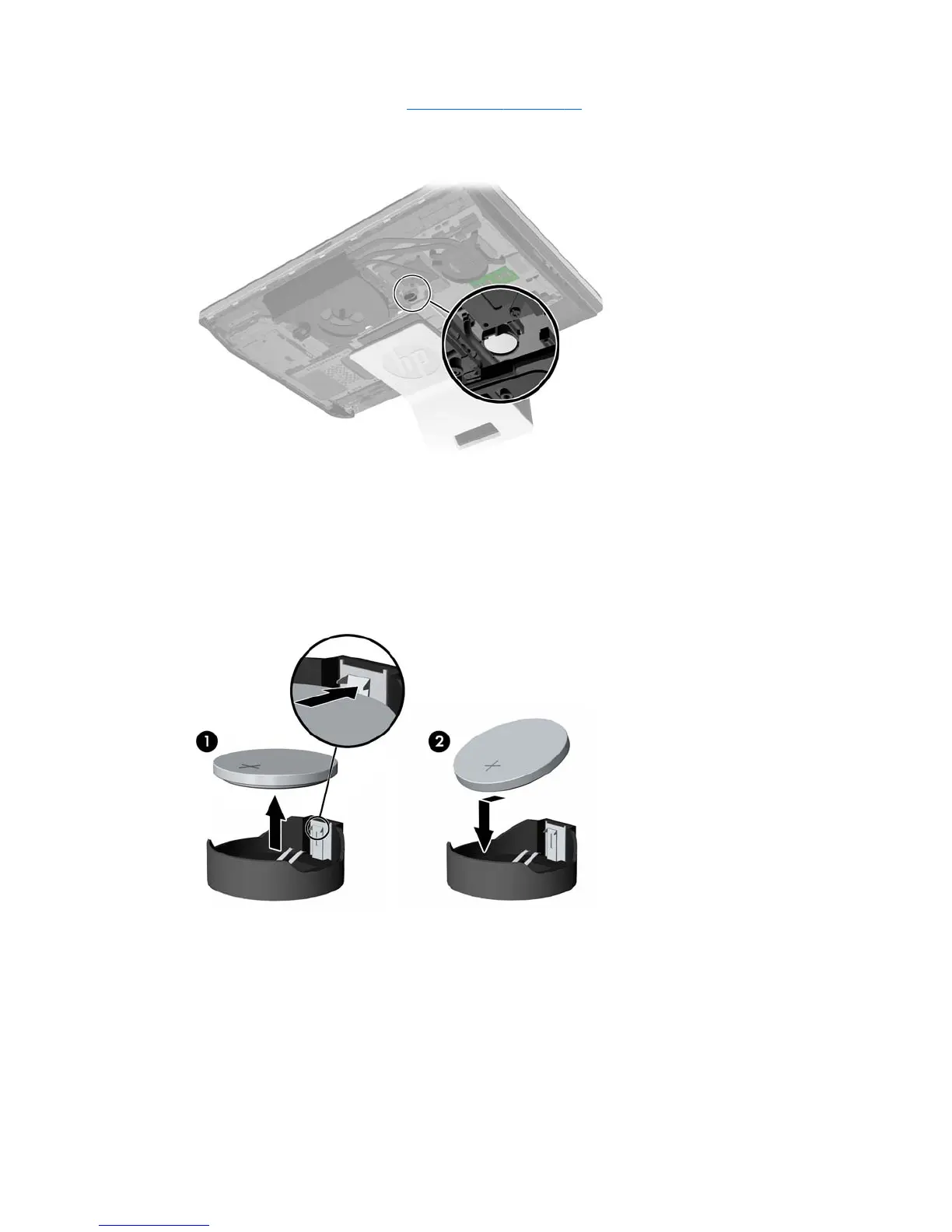

Figure 7-32 Locating the battery
3. To release the battery from its holder, squeeze the metal clamp that extends above one edge of
the battery. When the battery pops up, lift it out (1).
4. To insert the new battery, slide one edge of the replacement battery under the holder’s lip with
the positive side up. Push the other edge down until the clamp snaps over the other edge of the
battery (2).
Figure 7-33 Removing and Replacing a coin cell battery (Type 2)
60 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
