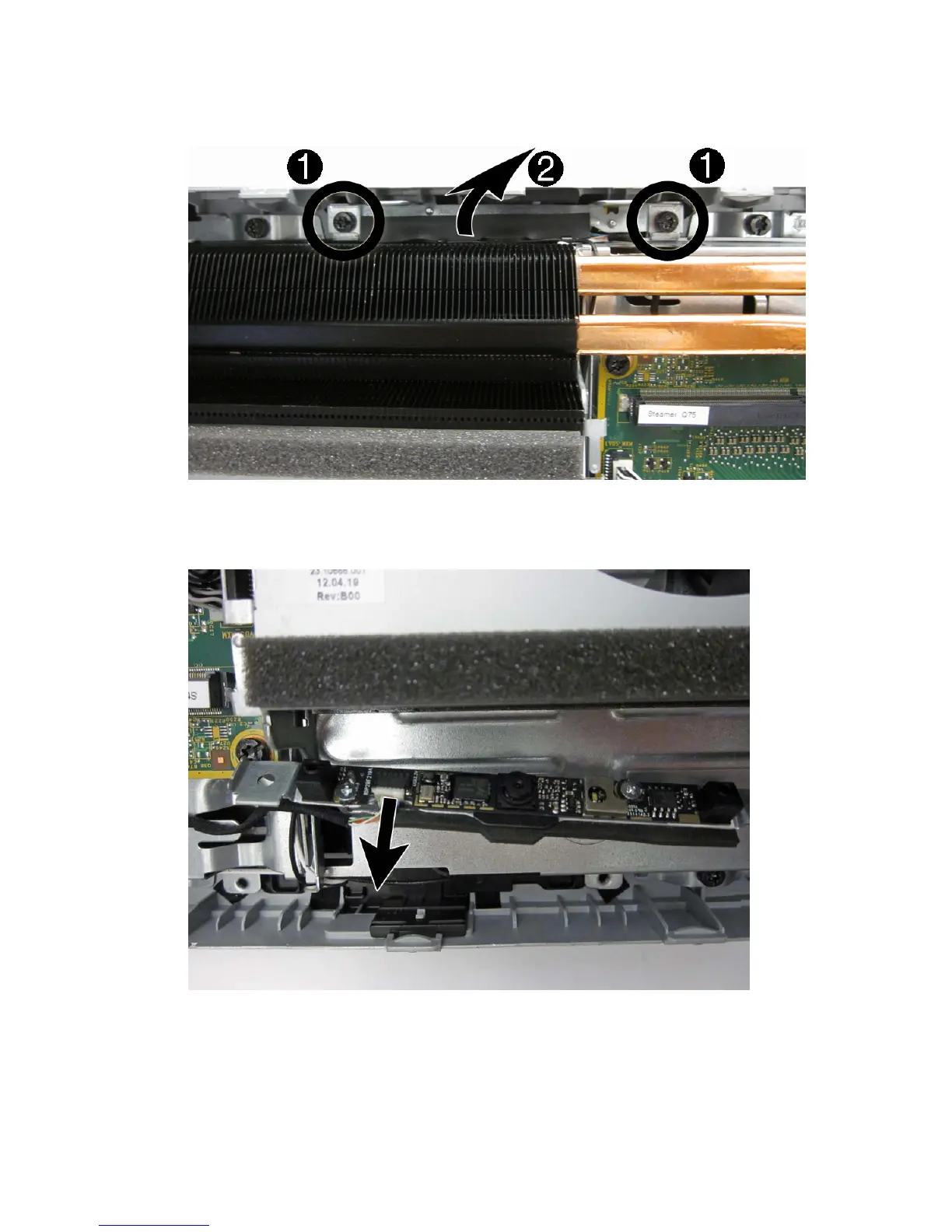

3. Remove the two Torx screws that secure the webcam module bracket to the computer.
Figure 7-37 Removing the webcam module
4. Rotate the assembly to gain access to the connector on the module, and then disconnect the
cable from the module.
Figure 7-38 Disconnecting the webcam module cable
64 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
