4. Remove the two black Torx screws (2) that secure the board to the computer.
Note the converter board jumper settings stamped on the chassis (3). Be sure to correctly
position the jumpers on the converter board for the installed display panel.

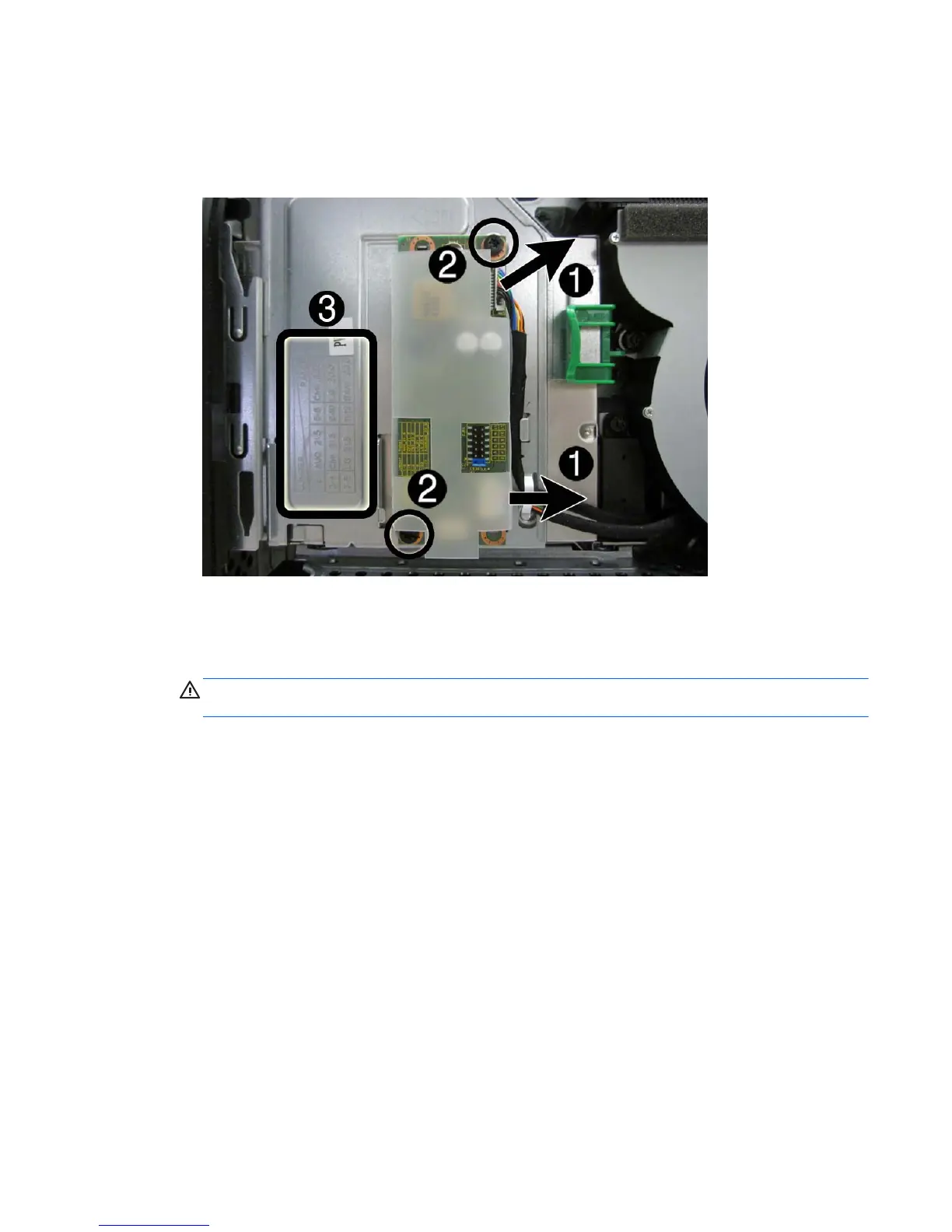

Figure 7-41 Removing the converter board
5. Lift the converter board from the computer.
Be sure to correctly position the jumpers on the converter board for the installed display panel,
as follows:
CAUTION: Incorrect jumper placement can result in damage to the converter board and
display panel.
●
21.5-inch panel
◦ AUO panel: pins (1)(2)
◦
CMI panel: pins (3)(4)
◦
LG panel: pins (7)(8)
●
23.0-inch panel
◦
CMI panel: pins (5)(6)
◦
LG panel: pins (9)(10)
◦ Samsung panel: pins (11)(12)
Converter board 67

HP Compaq Elite 8300 Specifications

General

Operating temperature (T-T)	10 - 35 °C
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
HDD size	3.5 \
Dimensions (WxDxH)	178 x 445 x 448 mm
Microphone in	Yes
HDMI ports quantity	0
PS/2 ports quantity	2
USB 2.0 ports quantity	6
PCI slots	3
Chassis type	Mini-Tower
Product type	PC barebone
Product color	Gray
Audio system	HD
Motherboard chipset	Intel® Q77 Express
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Power supply	320 W
Operating system installed	No
Processor model	-
Processor family	Intel

Weight and Dimensions

Weight	11200 g
