4. Remove the lower panel (see Lower panel on page 46).
5. Remove the metal plate (see
Metal plate on page 47).
6. Disconnect the antenna cables from the module (1).
7. Remove the Phillips screw (2) that secures the module to the computer.

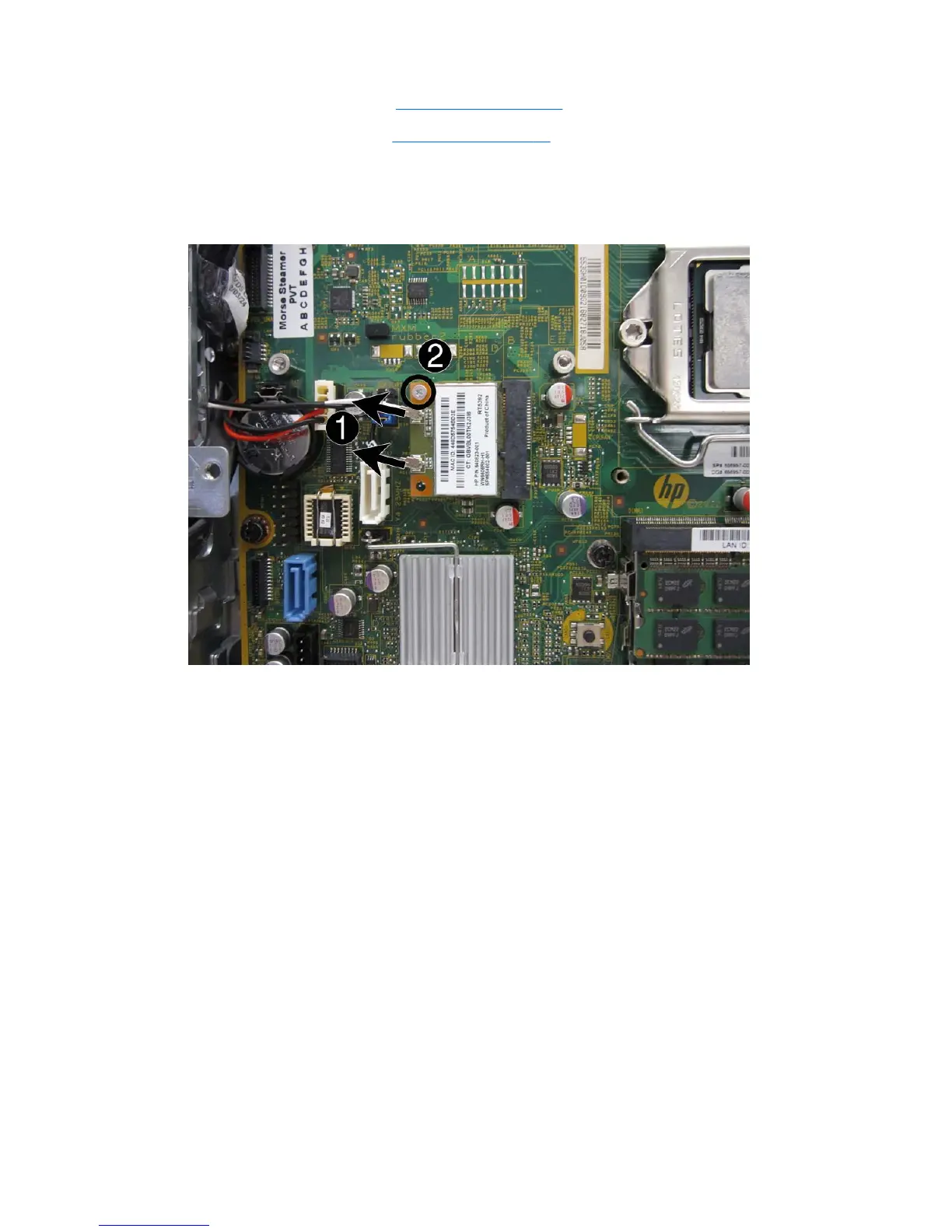

Figure 7-52 Removing the WLAN module screw and antennas
78 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
