5. Remove the Torx screw (1) that secures the power connector to the computer, and then lift the
connector from atop the speaker (2).

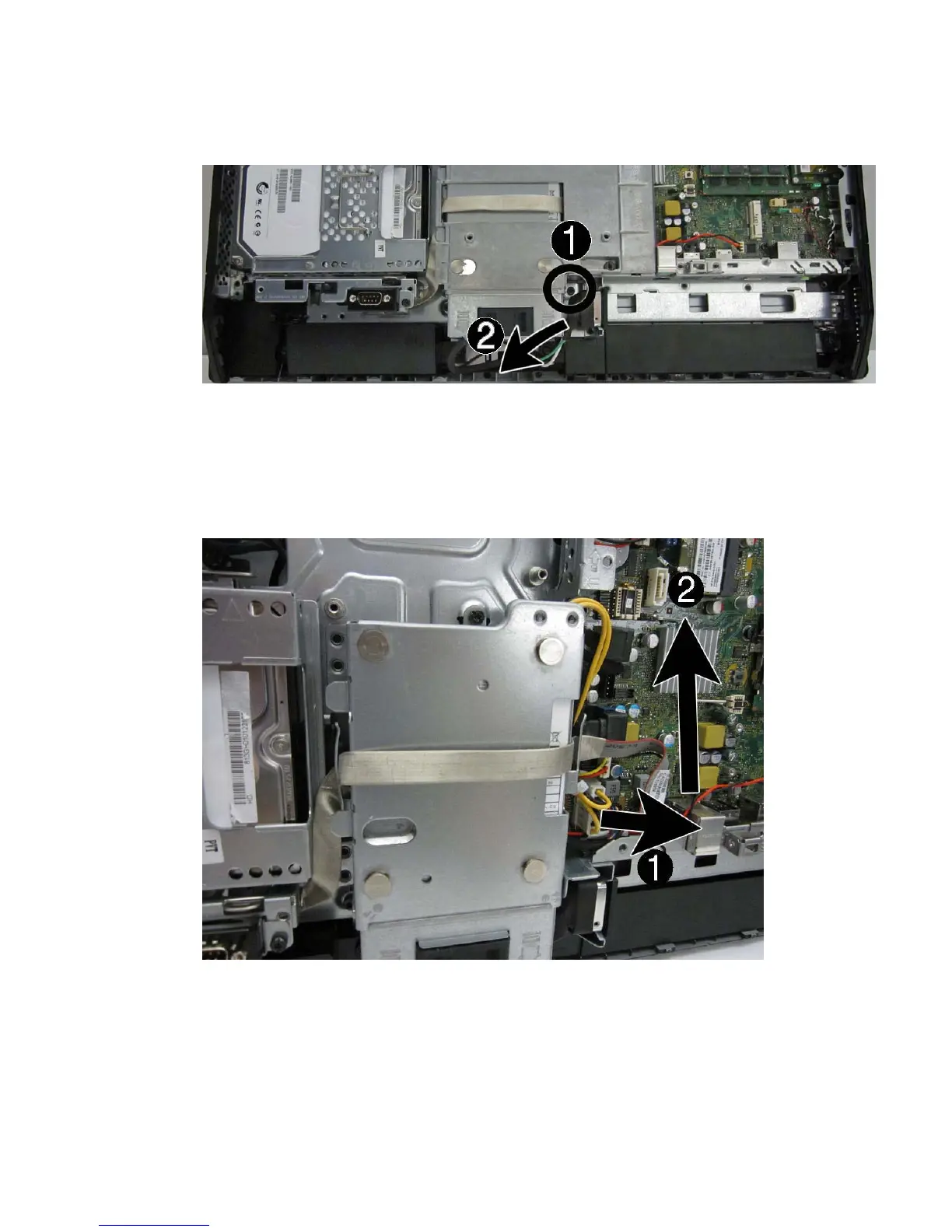

Figure 7-62 Removing the power connector
6. Disconnect the cable from the system board connector (1).
7. Position the cable above the power supply (2).
Positioning the cable above the power supply makes it easier to slide the power supply
downward and out of the bracket that secures it.
Figure 7-63 Removing the power supply
Power supply 87
