Removal and Replacement Procedures
Maintenance and Service Guide 6–5
4. Remove the battery pack by following these steps:
a. Turn the computer upside down with the rear panel
toward
you.
b. Slide and hold the battery pack lock latch 1 to the right.
c. Slide the battery pack release latch 2 to the right. (The
battery pack disengages from the computer.)
d. Slide the battery pack 3 straight back and remove it.

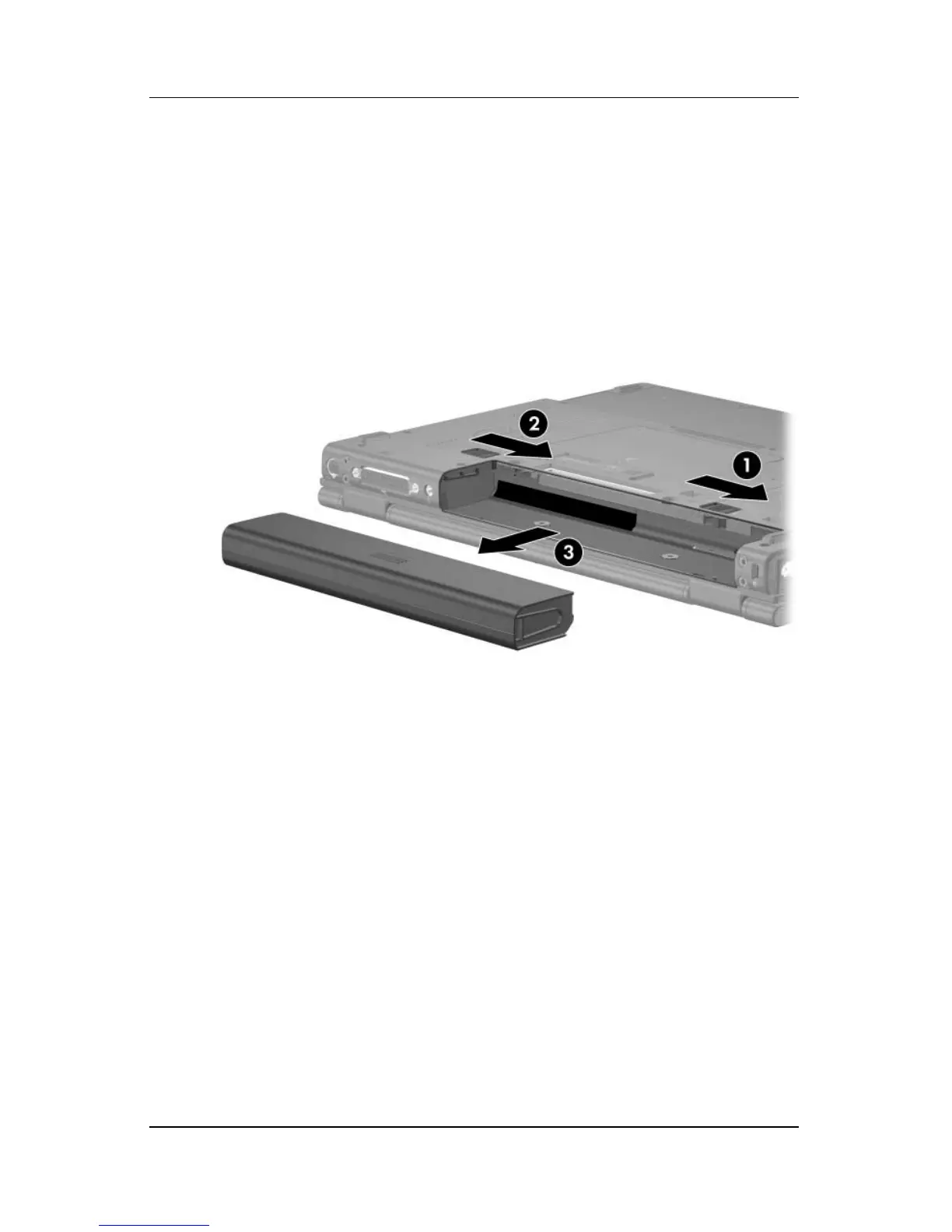

Removing the Battery Pack
Reverse the above procedure to install the battery pack.
