HP Compaq NC6110

6–8 Maintenance and Service Guide
Removal and Replacement Procedures
8. Remove the 2 Phillips PM2.5×4.0 hard drive frame shoulder
screws
1 from each side of the hard drive.
9. Remove the 2 Phillips PM2.5×4.0 hard drive frame screws 2
from each side of the hard drive.
10. Remove the 2 Phillips PM1.5×3.5 hard drive frame screws 3
from the front of the hard drive.
11. Lift the frame 4 straight up to remove if from the hard drive.
12. Remove the hard drive connector 5 from the hard drive.

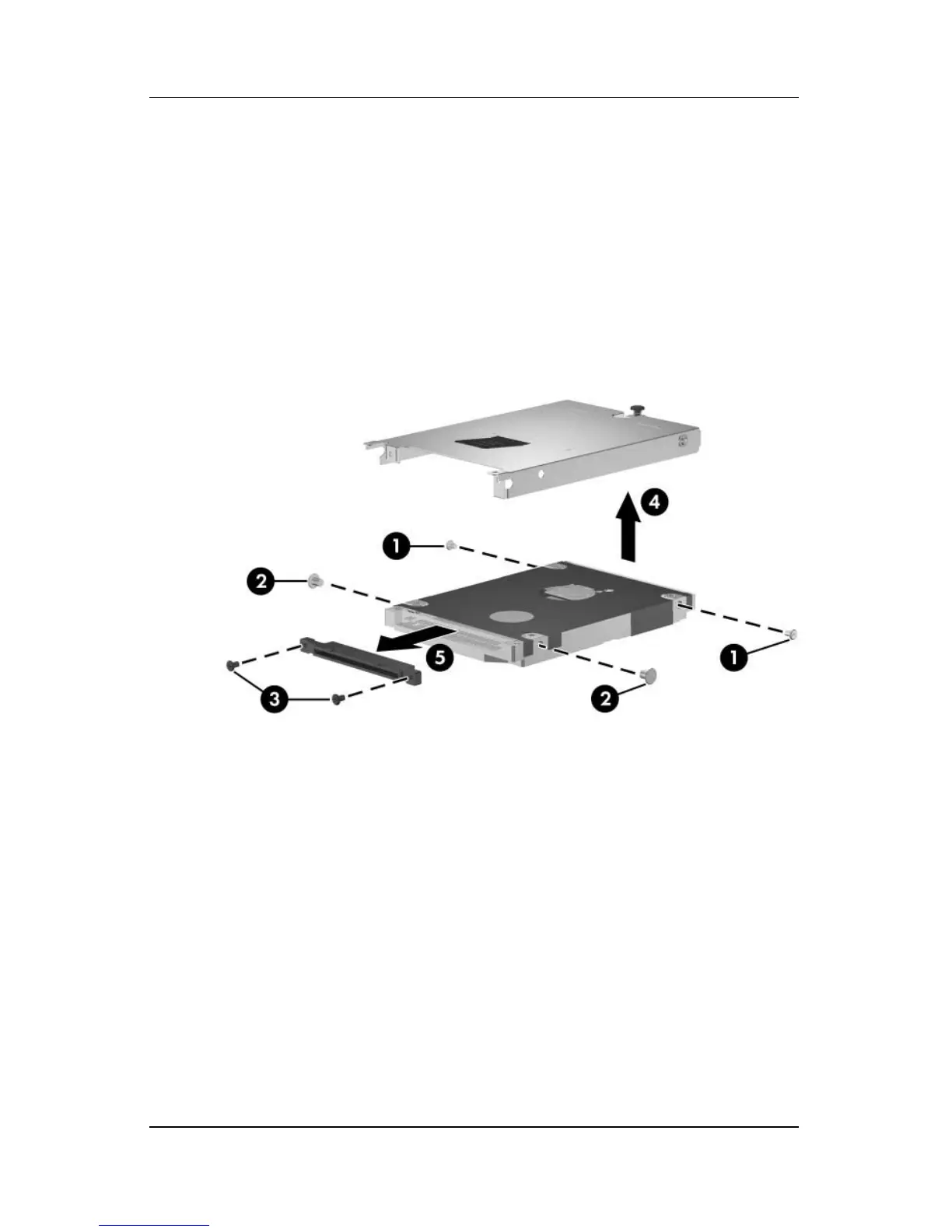

Removing the Hard Drive Frame and Connector
Reverse the above procedure to reassemble and install the
hard
drive.
