R
emo
v
al and Replace
ment Pr
ocedure
s
Maintenance and S
ervi
ce Guide
6–11
3.

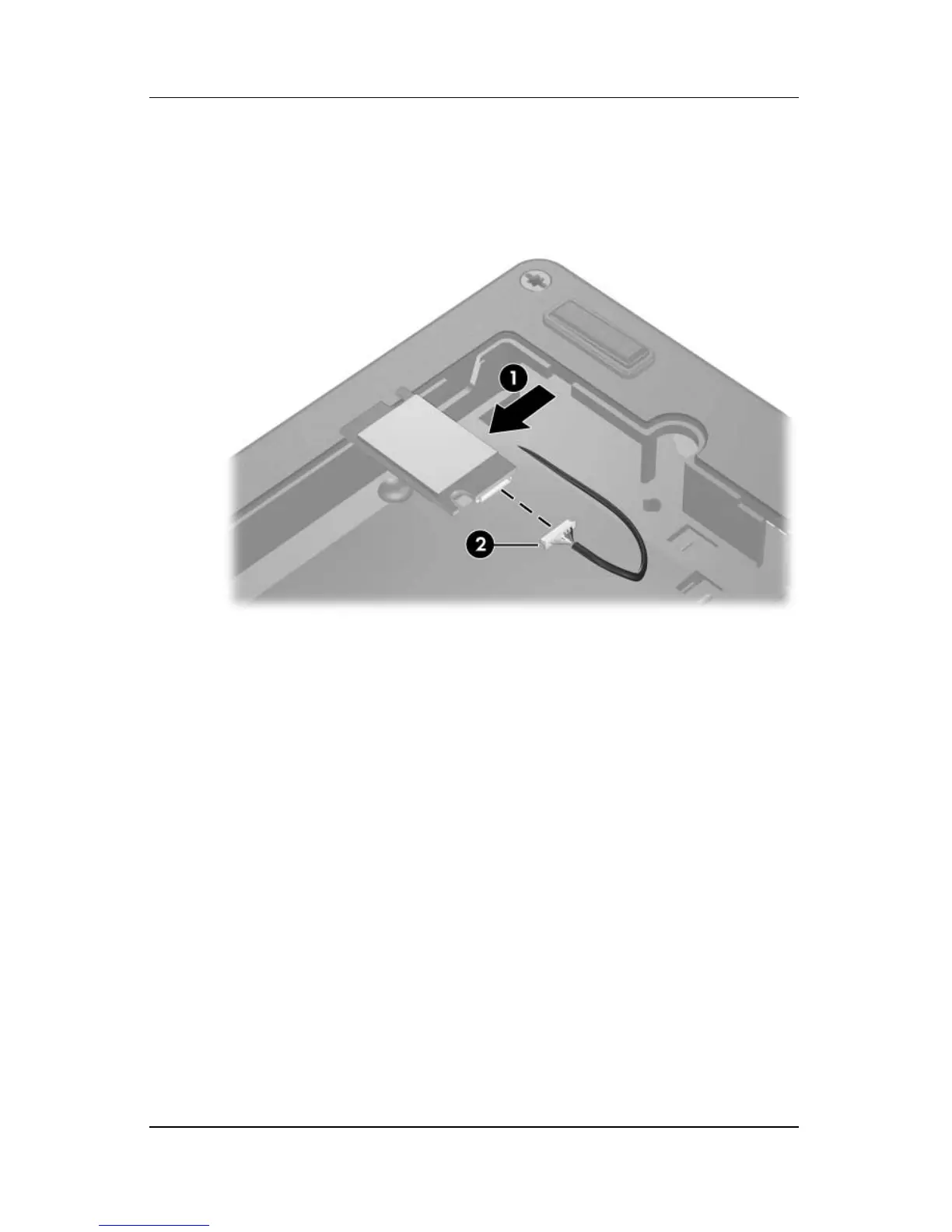

Slide the Bluetooth board
1
out of the clip in the hard dri
ve
compartment.
4.
Disconnect the Bluetooth board cable
2
from the board.
R
emo
v
ing the Blueto
oth Boar
d
Re
v
erse the abov
e procedure to install a Bluetooth board.
116
118
Table of Contents
Default Chapter
3
Table of Contents
3
1 Product Description
7
Features
8
Resetting the Computer
11
Power Management
11
External Components
12
Right-Side Components
15
Left-Side Components
16
Rear Panel Components
19
Bottom Components
26
Design Overview
28
2 Troubleshooting
29
Computer Setup
29
Using Computer Setup
29
Selecting from the Main Menu
30
Selecting from the Security Menu
31
Selecting from the Advanced Menu
32
Selecting from the Tools Menu
32
Troubleshooting Flowcharts
33
Flowchart 2.1—Initial Troubleshooting
35
Flowchart 2.2—No Power, Part
36
Flowchart 2.3—No Power, Part
37
Flowchart 2.4—No Power, Part
38
Flowchart 2.5—No Power, Part
39
Flowchart 2.6—No Video, Part
40
Flowchart 2.7—No Video, Part
41
Flowchart 2.9—No Operating System (Os) Loading
43
Flowchart 2.13—No os Loading, Diskette Drive
47
3 Software Updates and Recovery
55
Software Updates
55
Accessing Computer Information
56
Obtaining the Support Software CD
57
Software Updates and the HP Web Site
57
Downloading a Rom Update
58
Downloading Other Software
60
System Recovery
62
Safeguarding Your Data
62
Altiris Local Recovery
62
Using System Restore Points
63
Creating a System Restore Point
64
Restoring to a Restore Point
64
Reinstalling Applications
65
Repairing the Operating System
66
Reinstalling the Operating System
68
Reinstalling Device Drivers and Other Software
70
4 Illustrated Parts Catalog
71
Serial Number Location
71
Computer Major Components
72
Miscellaneous Plastics Kit
84
Miscellaneous Cable Kit
85
Mass Storage Devices
86
Miscellaneous (Not Illustrated)
88
Sequential Part Number Listing
91
5 Removal and Replacement Preliminaries
99
Tools Required
99
Service Considerations
100
Plastic Parts
100
Cables and Connectors
100
Preventing Damage to Removable Drives
101
Preventing Electrostatic Damage
102
Packaging and Transporting Precautions
103
Workstation Precautions
104
Grounding Equipment and Methods
105
Typical Electrostatic Voltage Levels
106
Removal and Replacement Procedures
107
Serial Number
107
Disassembly Sequence Chart
108
Preparing the Computer for Disassembly
110
Hard Drive
112
Computer Feet
115
Bluetooth Board
116
External Memory Module
118
Mini PCI Communications Module
120
Optical Drive
122
Keyboard
124
Switch Cover
130
LED Board
132
Fan
134
Heat Sink
135
Processor
136
Modem Board
138
Internal Memory Module
140
RTC Battery
141
Display Assembly
142
Top Cover
145
Speaker
149
Digital Media Board
152
Usb/Audio Board
154
System Board
156
Serial Connector Module
161
7 Specifications
163
Hard Drives
168
System Dma
178
System Interrupts
179
System Memory Map
184
Connector Pin Assignments
185
Universal Serial Bus
186
Parallel Port
188
External Monitor
190
Power Cord Set Requirements
193
Conductor Power Cord Set
193
General Requirements
194
Screw Listing
197
