Removal and Replacement Procedures
Maintenance and Service Guide 6–27

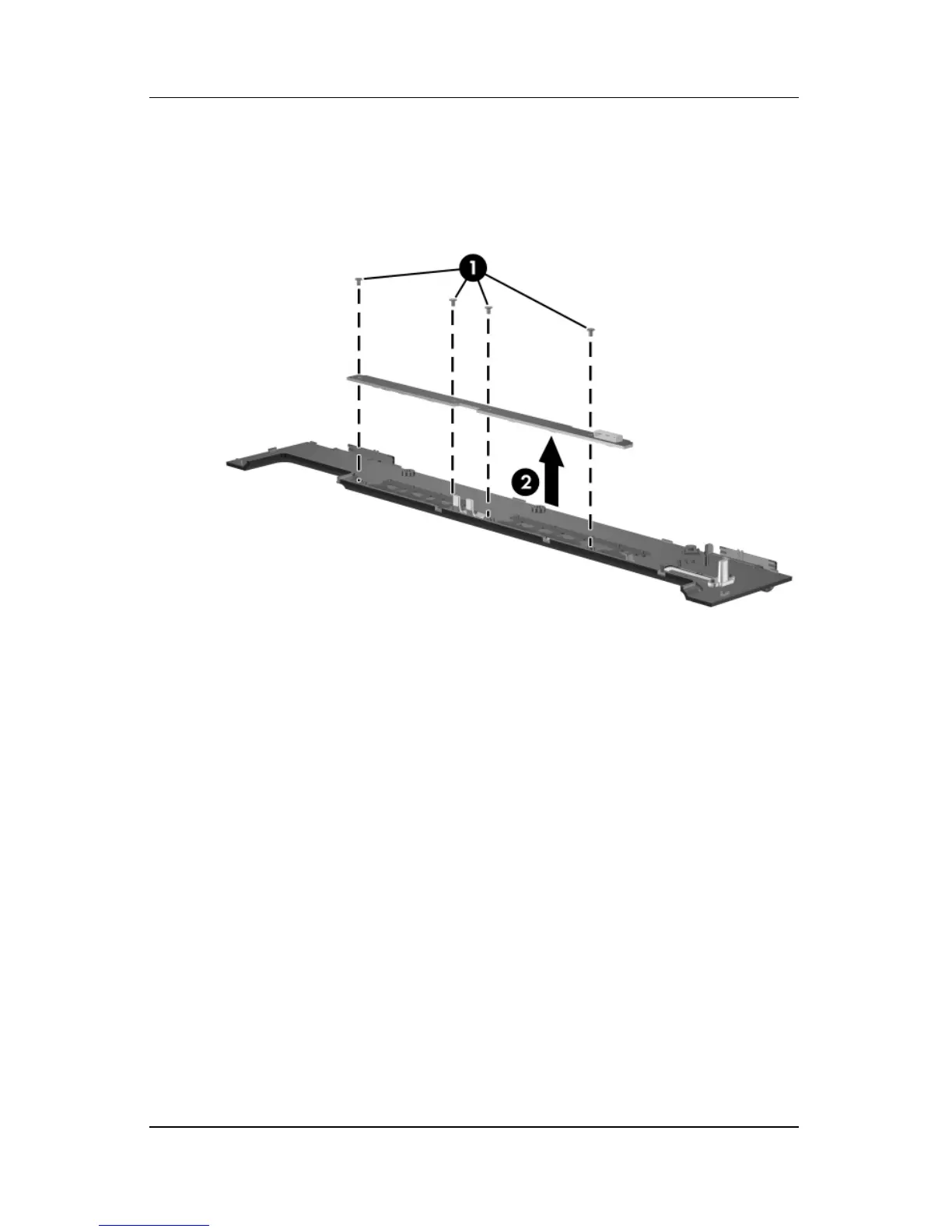

6. Remove the 4 Phillips PM1.5×4.0 screws 1 that secure the
LED board to the switch cover.
7. Remove the LED board 2.
Removing the LED Board
Reverse the above procedure to install the LED board.
