Removal and Replacement Procedures
Maintenance and Service Guide 6–33
3. Remove the 2 Phillips PM2.0×3.0 screws 1 that secure the
modem board to the computer.
4. Lift the right side of the modem board 2 to disconnect it
from the system board.
5. Disconnect the modem cable 3 from the modem board.
6. Remove the modem board.

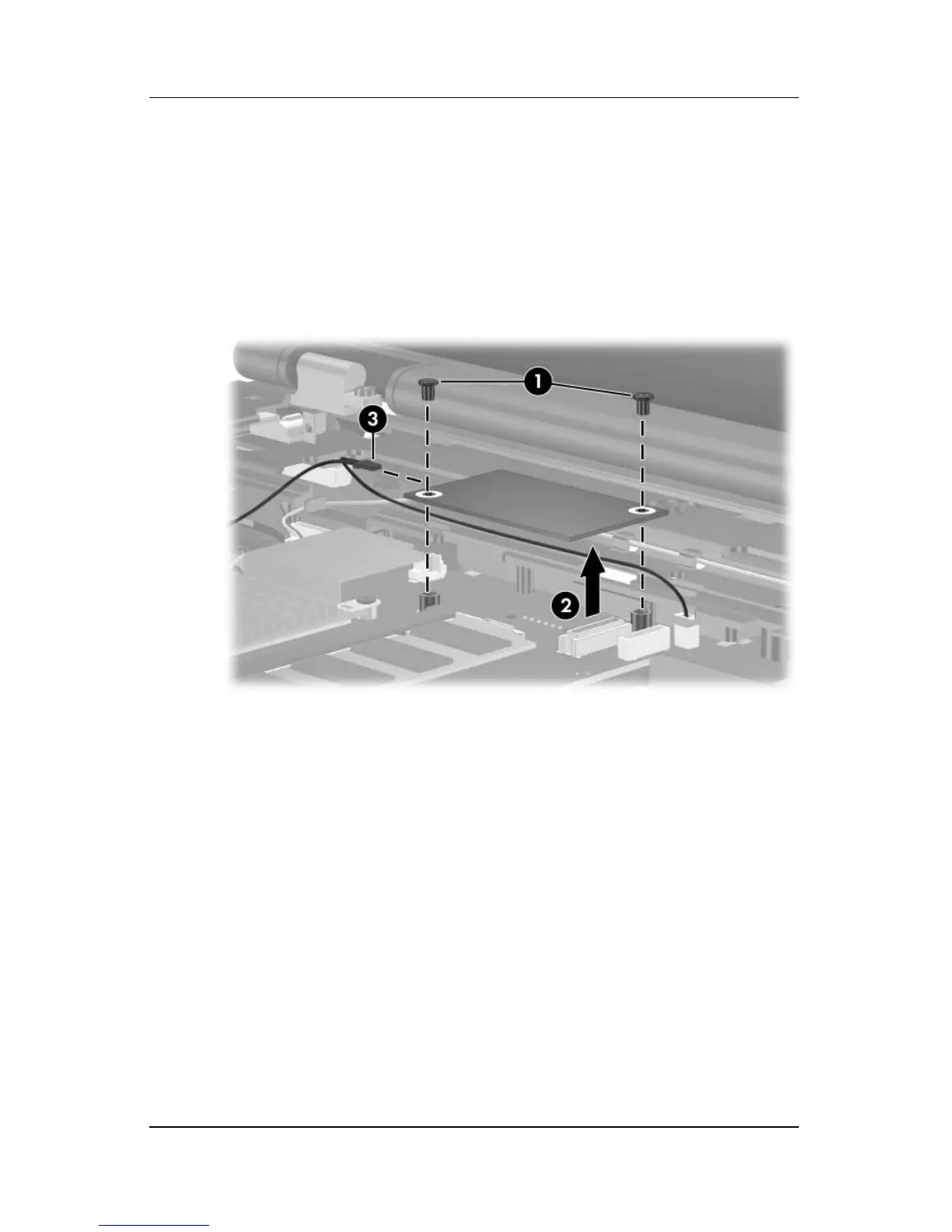

Removing the Modem Board
Reverse the above procedure to install the modem board.
