Removal and Replacement Procedures
Maintenance and Service Guide 6–45

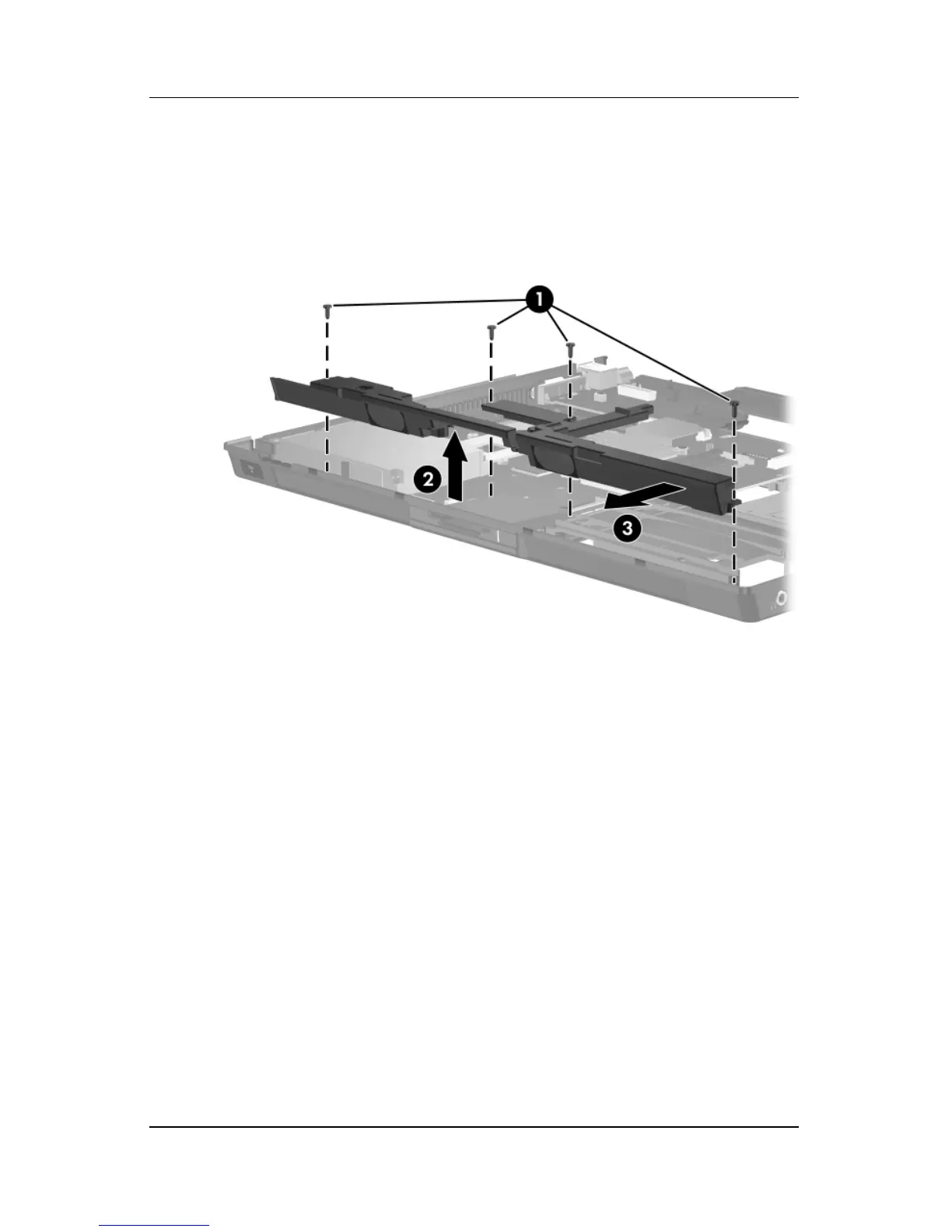

3. Remove the 4 Torx8 T8M2.0×4.0 screws 1 that secure the
speaker to the computer.
4. Lift the speaker 2 until it clears the system board.
5. Slide the speaker 3 toward you and remove it.
Removing the Speaker
Reverse the above procedure to install the speaker.
