Removal and Replacement Procedures
Maintenance and Service Guide 6–47
2. Release the ZIF connector to which the digital media board
cable is attached and disconnect the digital media board
cable
1 from the system board.
3. Remove the digital media board 2.

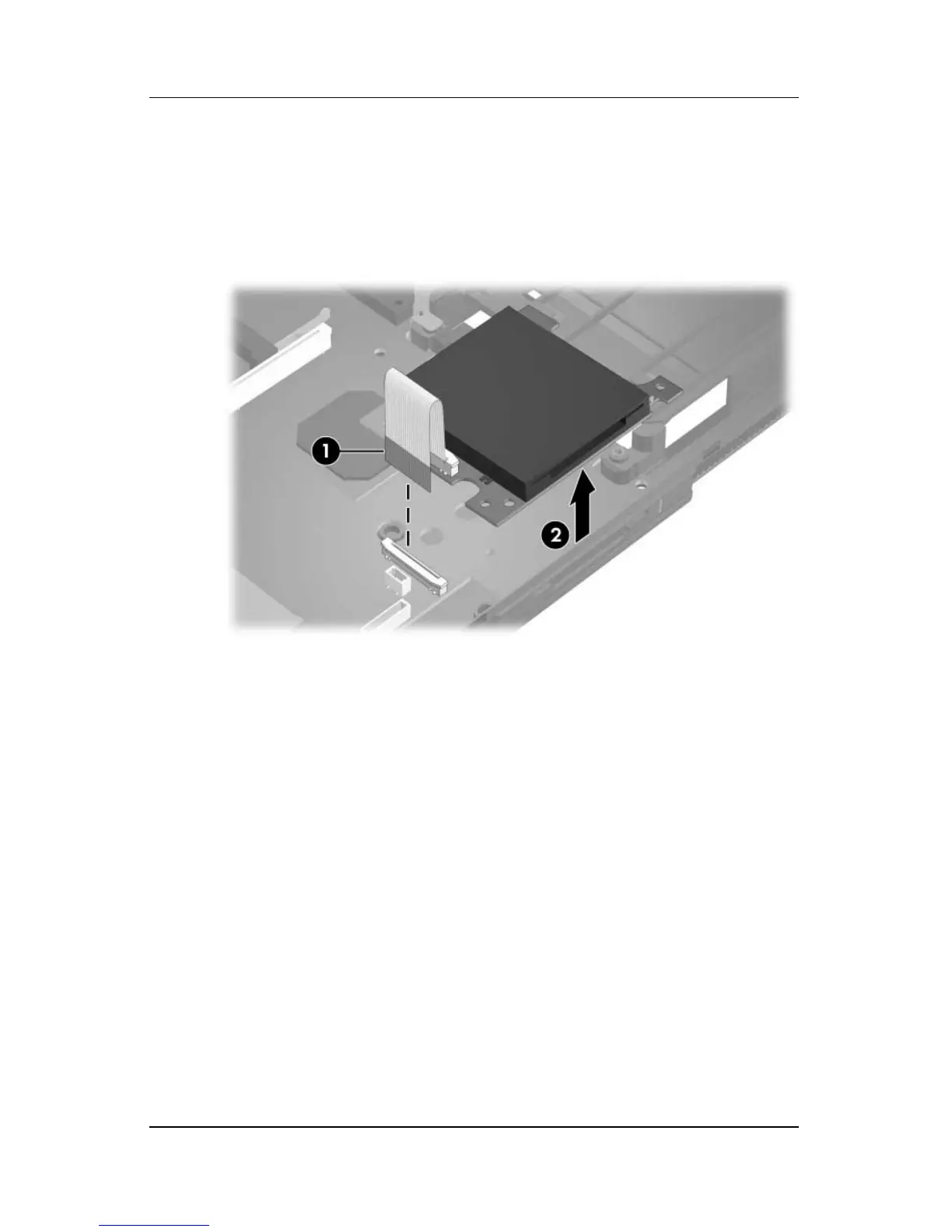

Removing the Digital Media Board
Reverse the above procedure to install the digital media board.
