HP Compaq NC6110 - Page 222

D–6 Maintenance and Service Guide
Display Component Recycling

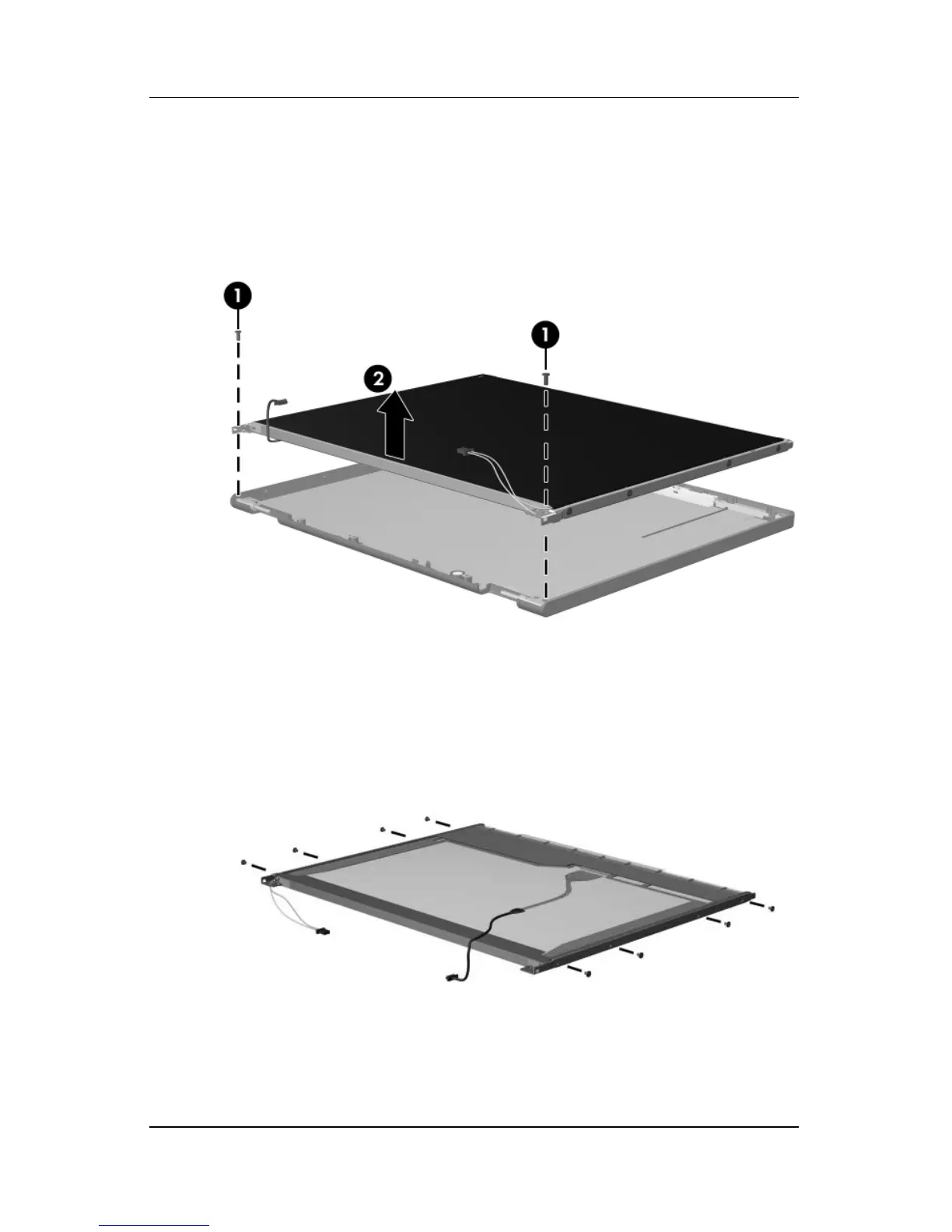

5. Remove all screws 1 that secure the display panel assembly
to the display enclosure.
6. Remove the display panel assembly 2 from the display
enclosure.
Removing the Display Panel Assembly
7. Turn the display panel assembly upside down.
8. Remove all screws that secure the display panel frame to the
display panel.
Removing the Display Panel Frame Screws
