Removal and Replacement Procedures
Maintenance and Service Guide 6–17
3. Turn the notebook display-side up with front toward you.
4. Open the notebook as far as possible.
5. Insert a flat blade screwdriver into the 2 notches in the switch
cover (one behind the
f1 and f2 keys 1, one behind the pause
and
insert keys 2) and lift up 3 until the front edge of the
switch cover disengages from the notebook.

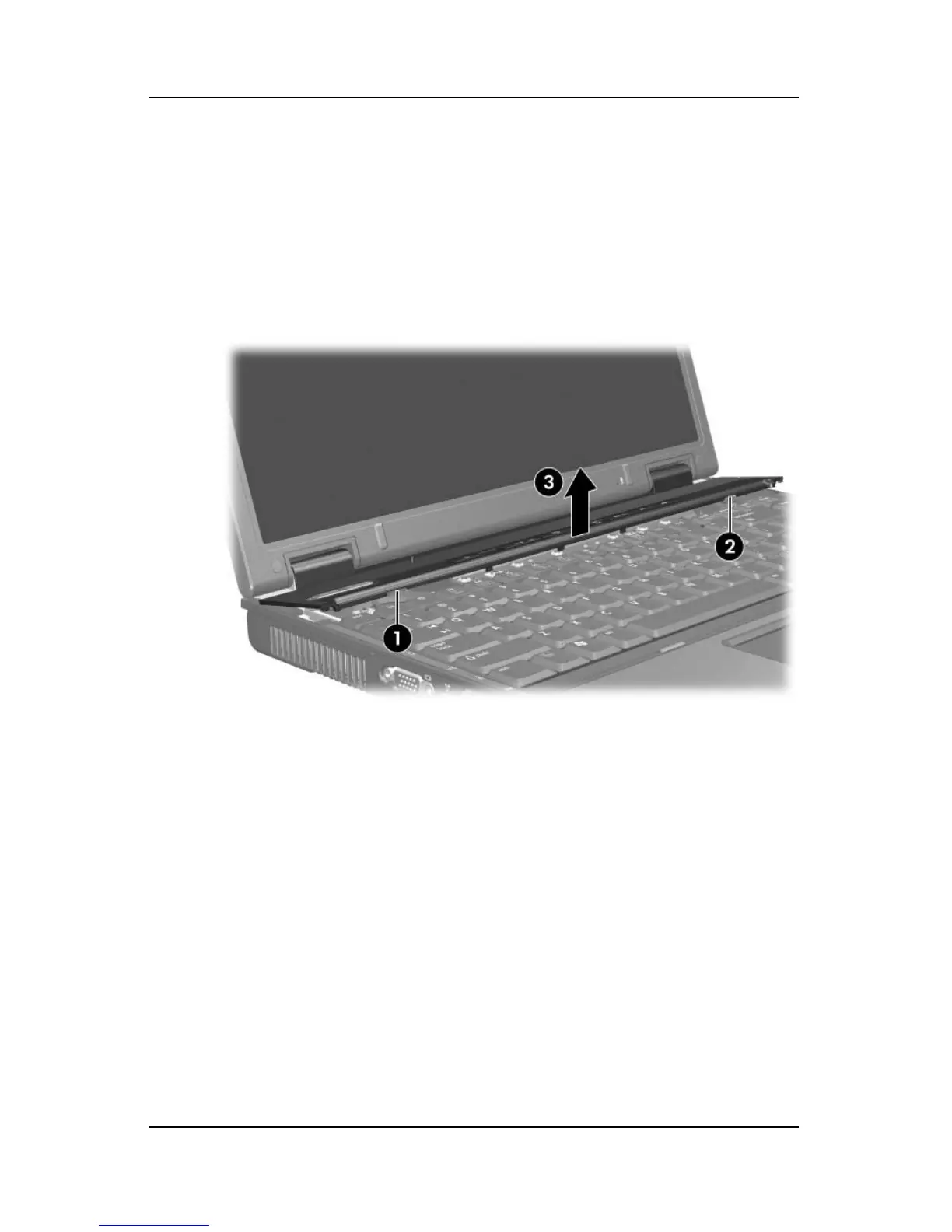

Releasing the Switch Cover, Part 1
To Next Page
