Removal and Replacement Procedures
Maintenance and Service Guide 6ā31
2. Slide the tip of the processor socket release arm toward the
display 1 until it clears the notch 2 on the processor socket.
3. Swing the processor socket release arm to the left 3 as far as
it will go.
4. Lift the processor straight up and remove it 4.
ā

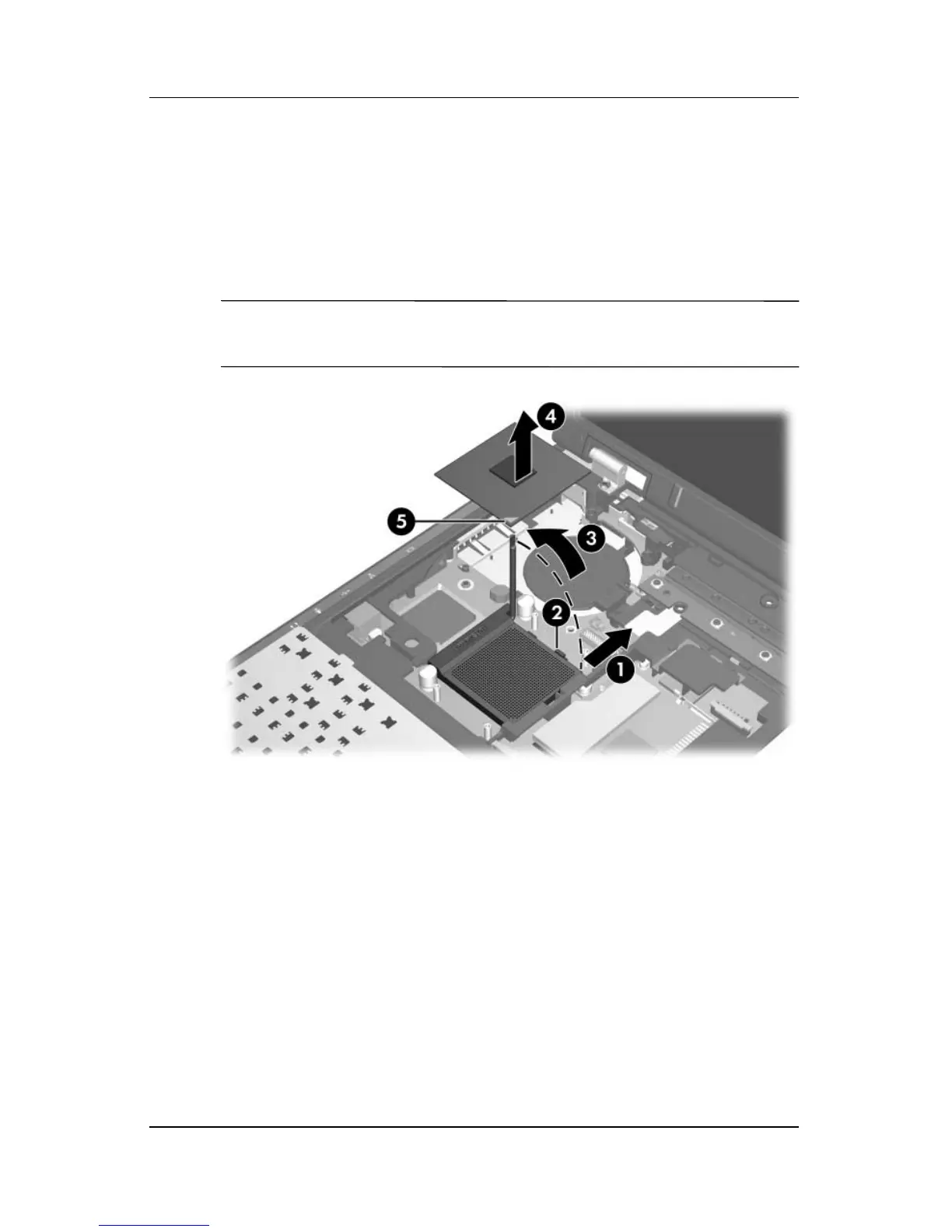

The gold triangle 5 on the processor should be aligned in the
front right corner when you install the processor.
Removing the Processor
Reverse the above procedure to install the processor.
