Removal and Replacement Procedures
Maintenance and Service Guide 6–35
4. Disconnect the auxiliary and main 1 antenna cables from the
Mini PCI communications card.
Before disconnecting the antenna cables, make note of which
cable is attached to which antenna clip on the Mini PCI
communications card.
5. Spread the 2 retaining tabs 2 on each side of the
Mini PCI socket to release the Mini PCI communications
card. (The edge of the card opposite the socket rises away
from the notebook.)
6. Remove the Mini PCI communications card by pulling the
card away from the socket at a 45-degree angle 3.
The Mini PCI communications card is slotted 4 to prevent
incorrect installation.

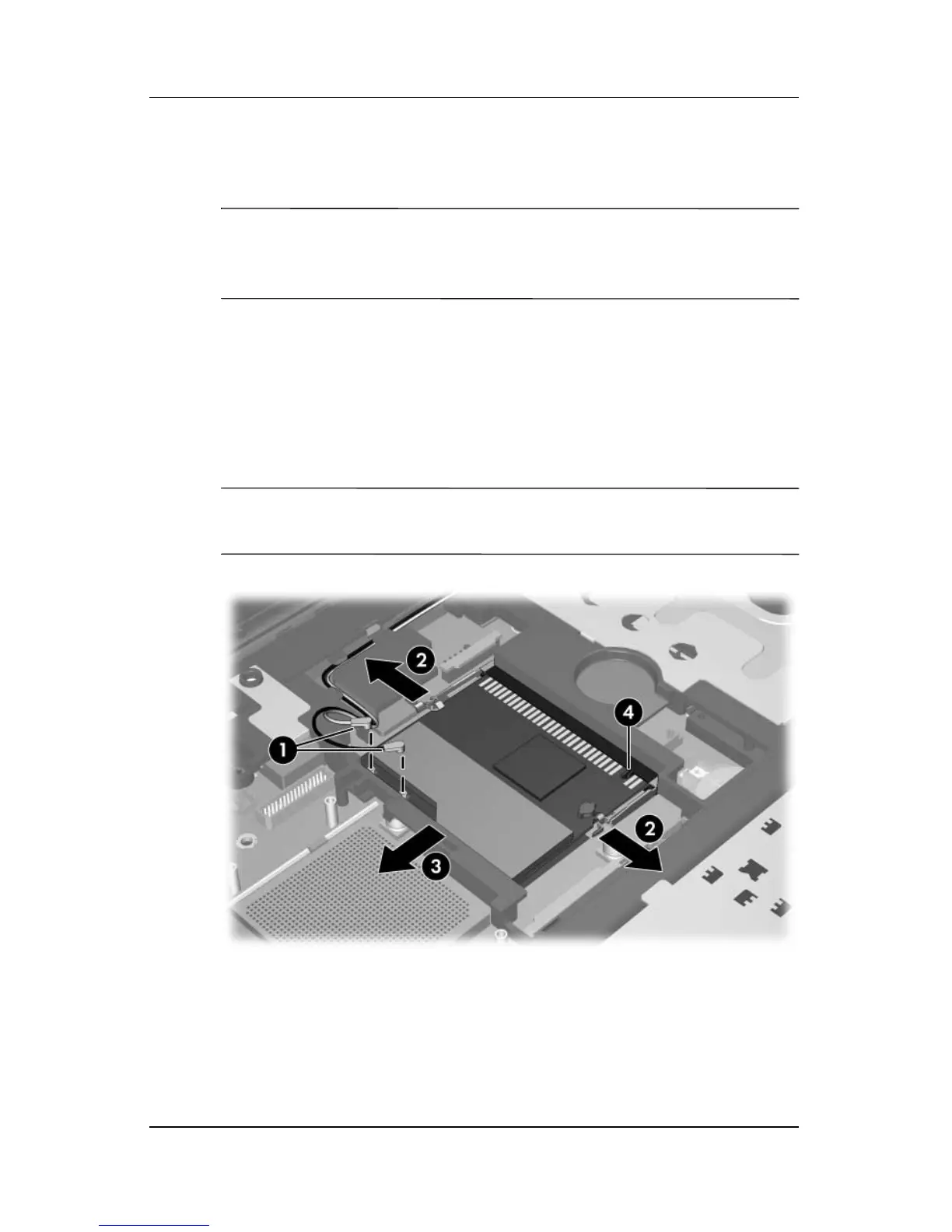

Removing a Mini PCI Communications Card
Reverse the above procedure to install a Mini PCI
communications card.
