Screw Listing
Maintenance and Service Guide C–5

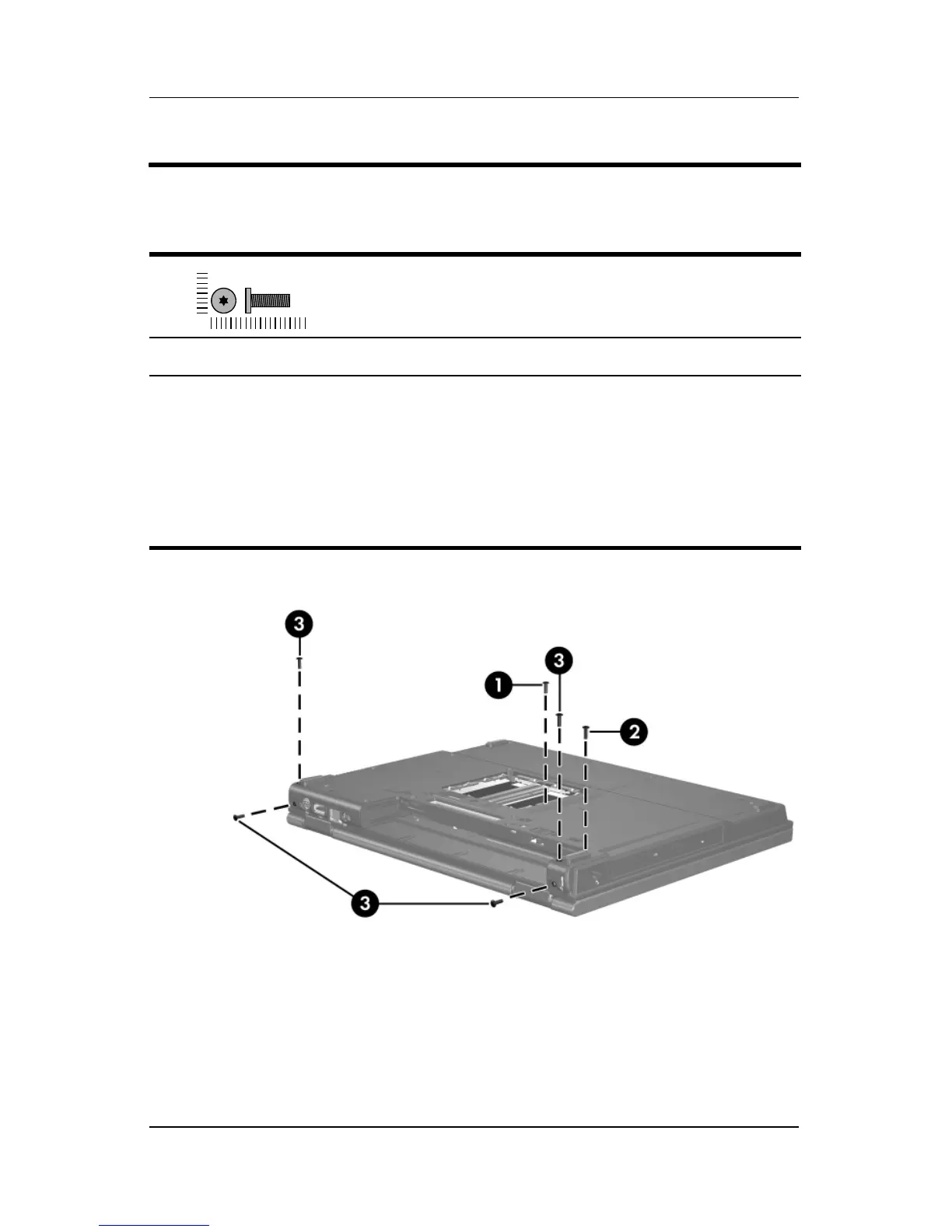

Torx T8M2.5×9.0 Screw Locations
Table C-4
Torx T8M2.5×9.0 Screw
Color Qty. Length Thread
Head
Width
Black 20 9.0 mm 2.5 mm 5.0 mm
Where used:
1 One screw that secures the optical drive to the notebook (documented in
Section 6.8)
2 One screw that secures the switch cover to the notebook (documented in
Section 6.9)
3 Four screws that secure the display assembly to the notebook (documented
in Section 6.17)
