5–38 Maintenance and Service Guide
Removal and Replacement Procedures

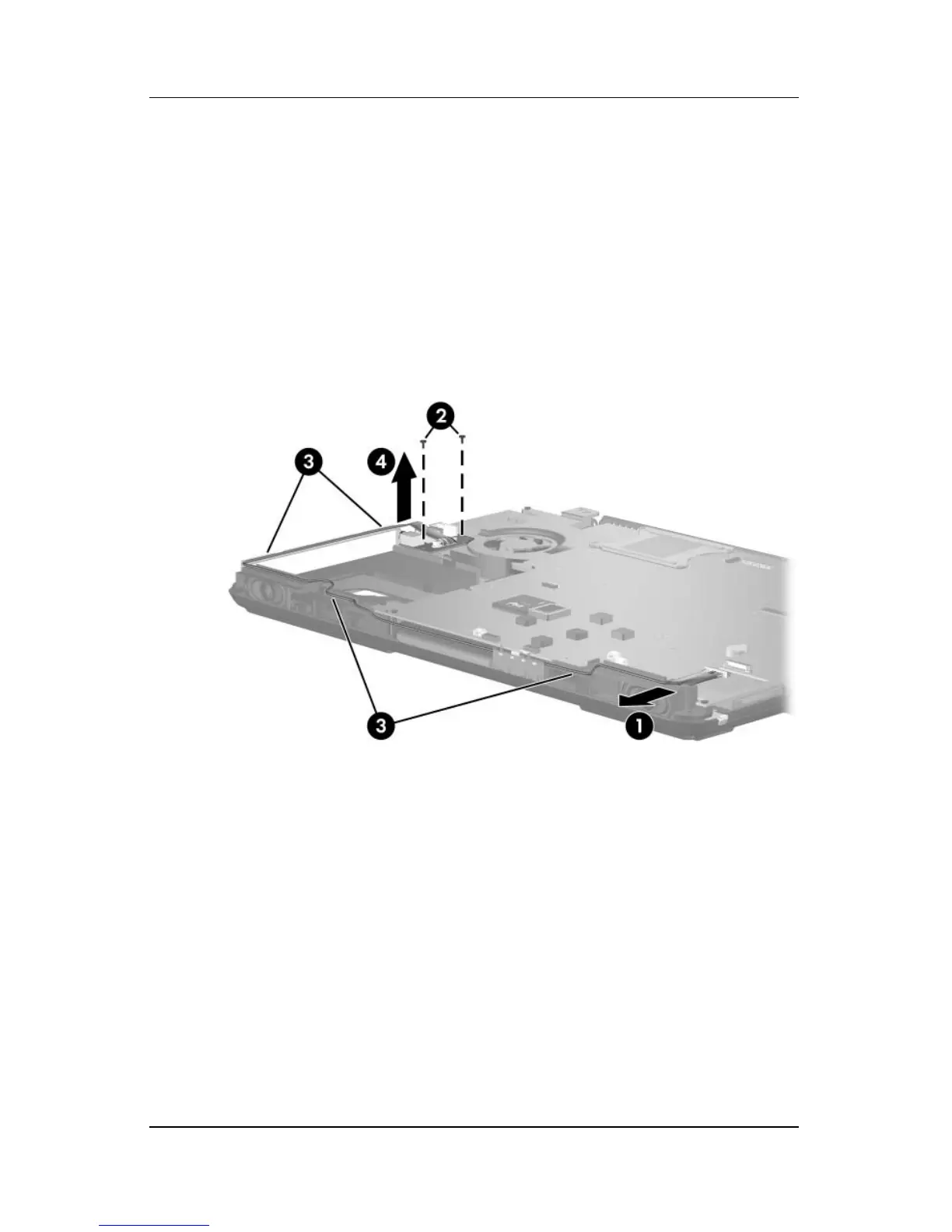

2. Disconnect the audio/USB board cable 1 from the system
board.
3. Remove the two PM2.0×8.0 screws 2 that secure the
audio/USB board to the base enclosure.
4. Remove the audio/USB board cable from the base enclosure
clips 3 through which it is routed.
5. Remove the audio/USB board 4.
Removing the Audio/USB Board
Reverse the above procedure to install the audio/USB board.
