5–42 Maintenance and Service Guide
Removal and Replacement Procedures
1. Prepare the notebook for disassembly (refer to Section 5.3)
and remove the following components:
a. Optical drive (refer to Section 5.5)
b. Switch cover (refer to Section 5.8)
c. Keyboard (refer to Section 5.10)
d. Display assembly (refer to Section 5.11)
e. Top cover (refer to Section 5.12)
2. Turn the notebook upside down with the front toward you.
3. Disconnect the fan cable from the system board through the
memory module compartment.

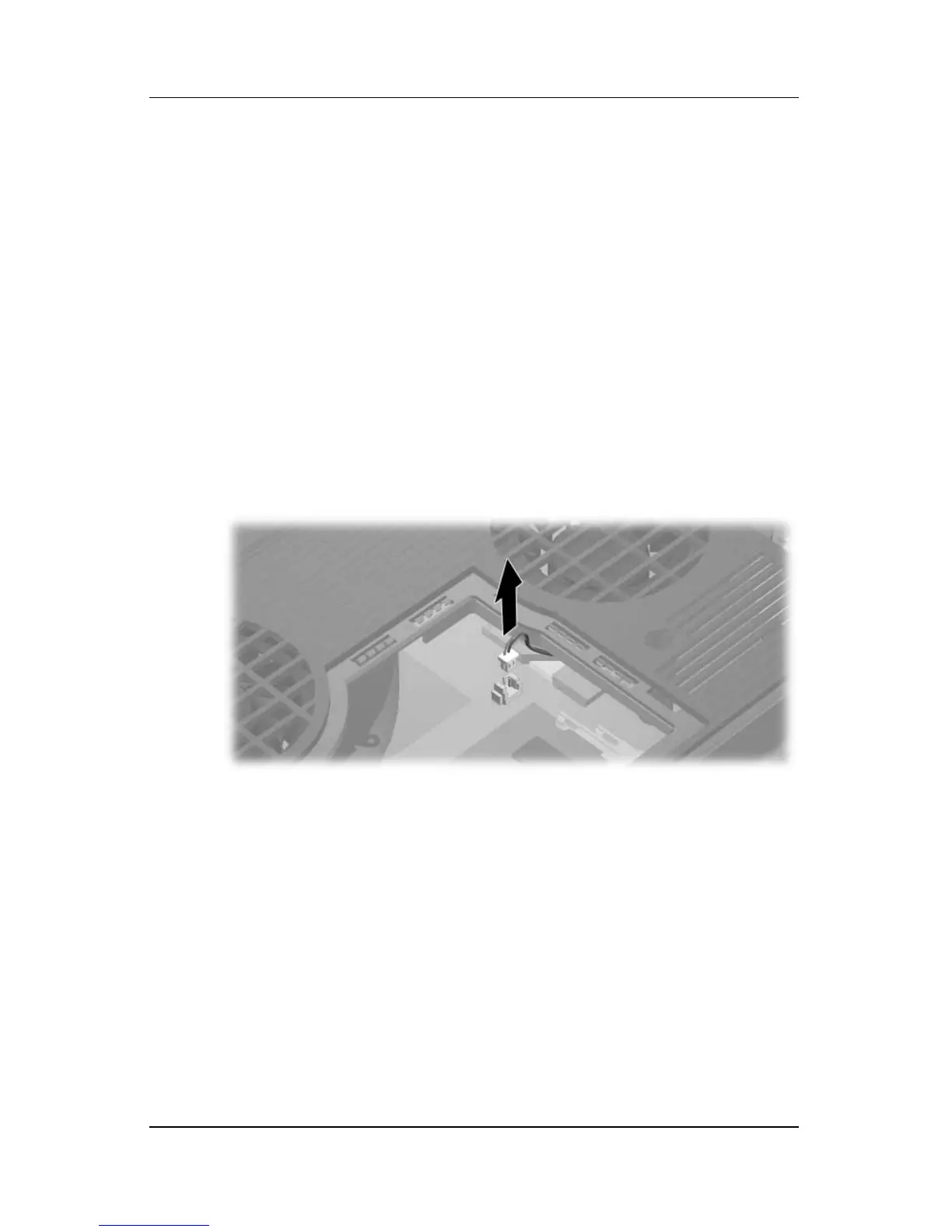

Disconnecting the Fan Cable
