5–46 Maintenance and Service Guide
Removal and Replacement Procedures
9. Position the notebook with the front panel toward you.

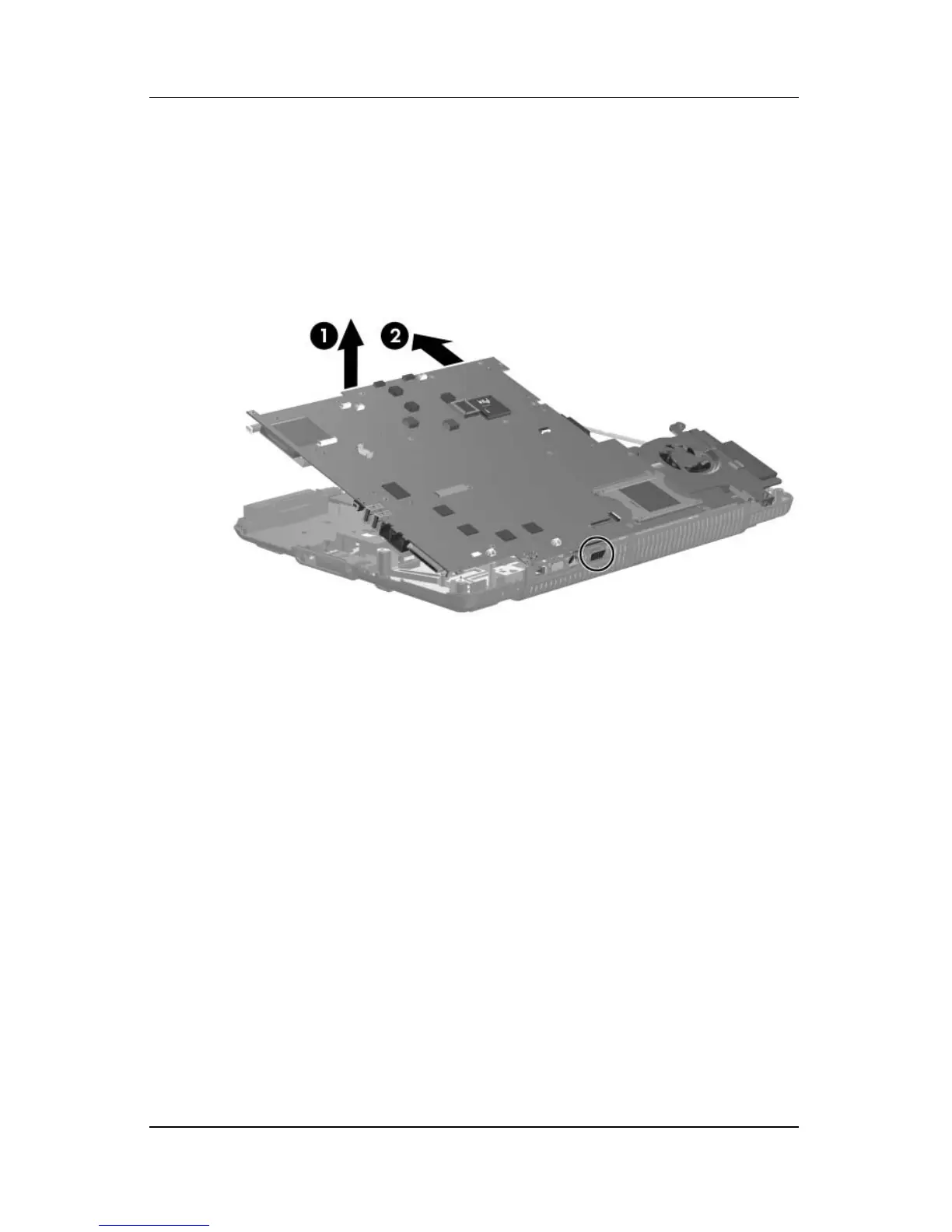

10. Lift the front edge of the system board until it clears the
base enclosure 1.
11. Slide the system board forward at an angle and remove it 2.
Removing the System Board
