An expansion port bracket and PC Card cage designed
specifically for the Compaq Presario X6000 are included with
the replacement system board. Follow steps 13 through 20 to
remove the expansion port bracket and PC Card cage that are
already installed on the replacment system board and replace
them with the bracket and cage designed for the
Compaq Presario X6000.
13. Position the system board with the expansion port and
PC Card slot toward you.
14. Remove the two SM1.5×9.0 shoulder screws 1 on each side
of the expansion port.
15. Remove the expansion port bracket 2.

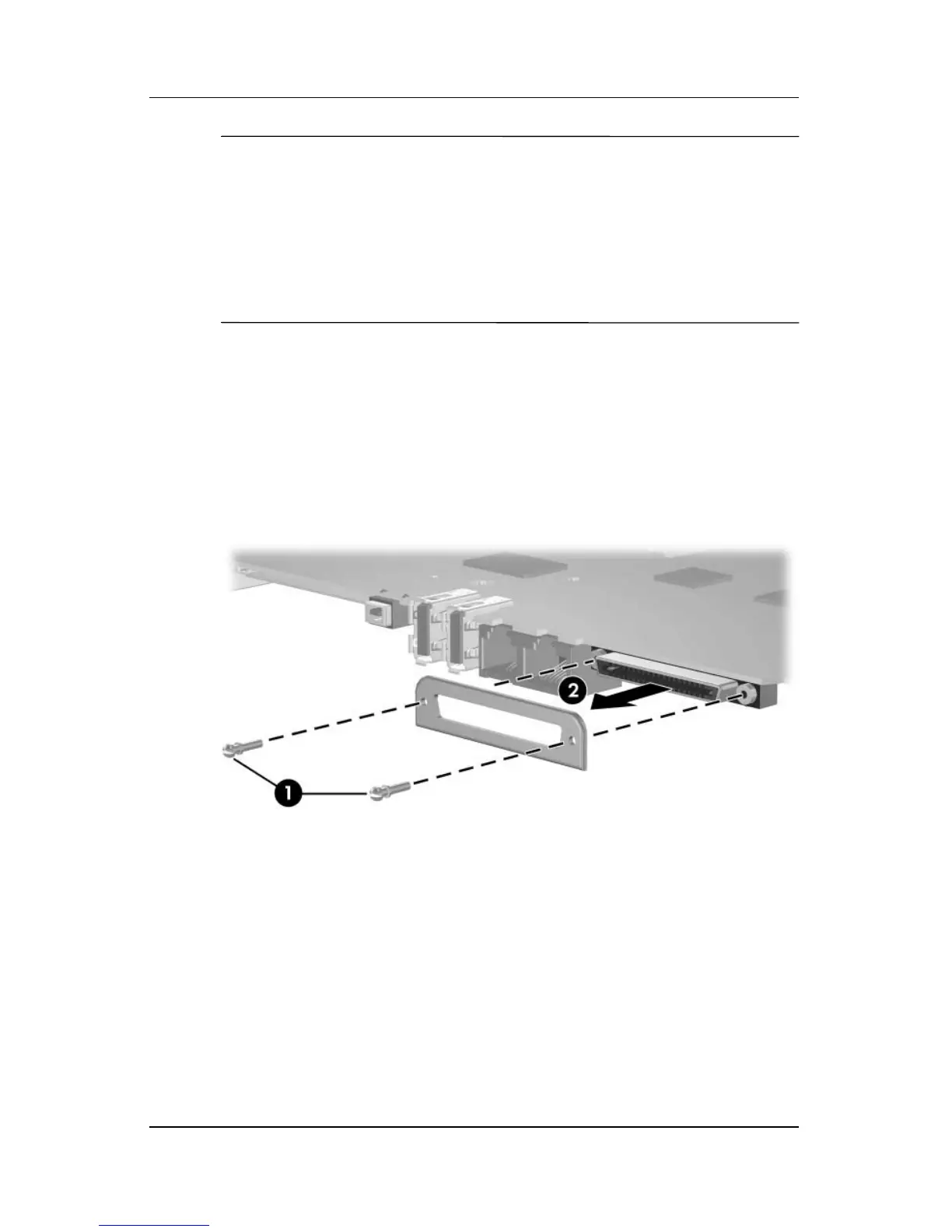

Removing the Expansion Port Bracket
16. Install the replacement expansion port bracket.
