Removal and Replacement Procedures
Maintenance and Service Guide 5–55
5. Remove the PM1.5×3.5 screw 1 and PM2.0×4.0 screw 2
that secure the right speaker to the base enclosure.
6. Lift the right side of the right speaker 2, then slide the
speaker to the right to remove it 3.

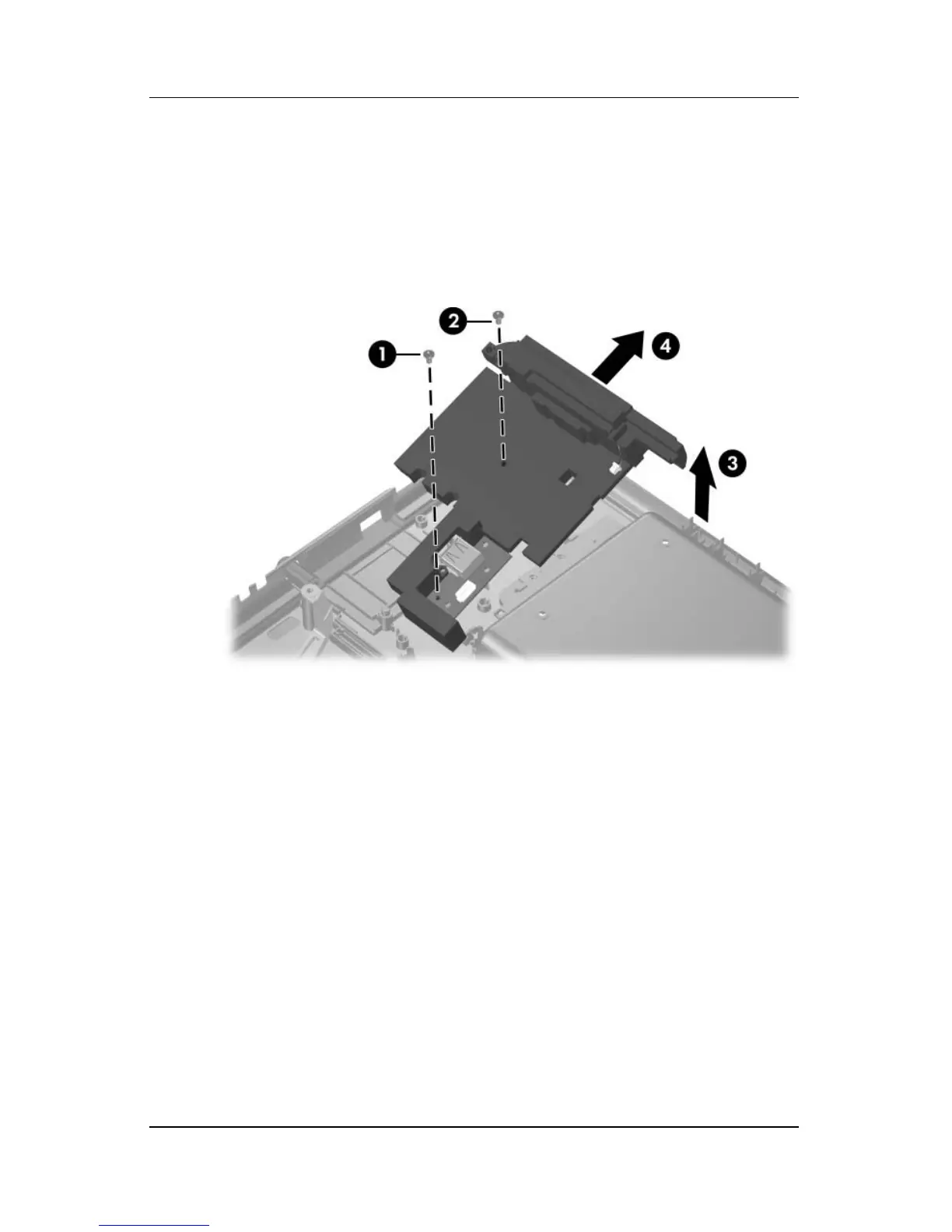

Removing the Right Speaker
Reverse the above procedure to install the speakers.
