Removal and Replacement Procedures
Maintenance and Service Guide 5–57

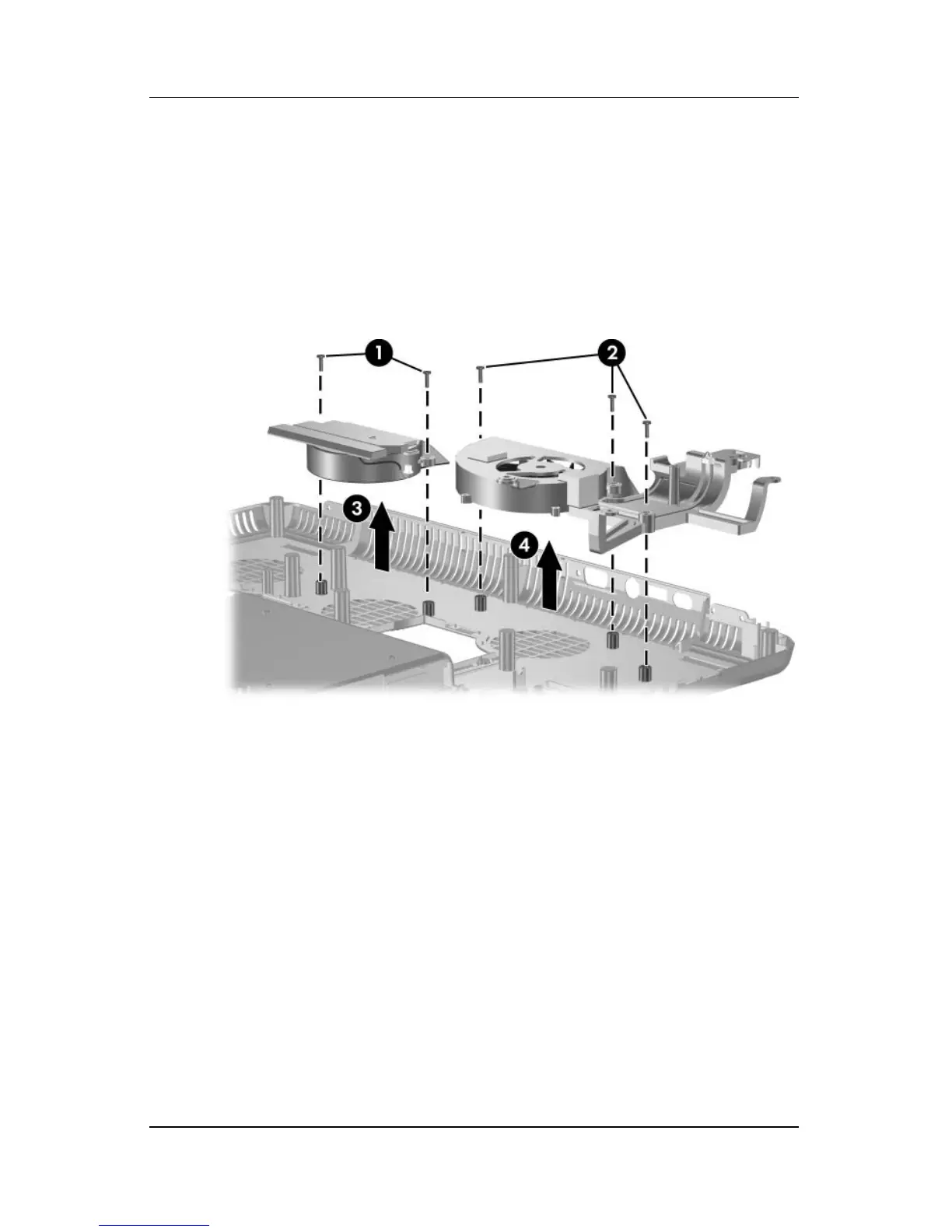

2. Remove the two PM2.0×8.0 screws 1 that secure the base
enclosure middle fan assembly to the base enclosure.
3. Remove the three PM2.0×8.0 screws 2 that secure the base
enclosure right fan assembly to the base enclosure.
4. Remove the middle 3 and right fans 4.
Removing the Base Enclosure Fans
Reverse the above procedure to install the base enclosure fans.
