Re
mov
al and R
eplacement Pr
ocedur
es
Maintenance and Serv
ice Gui
de
5–5
9

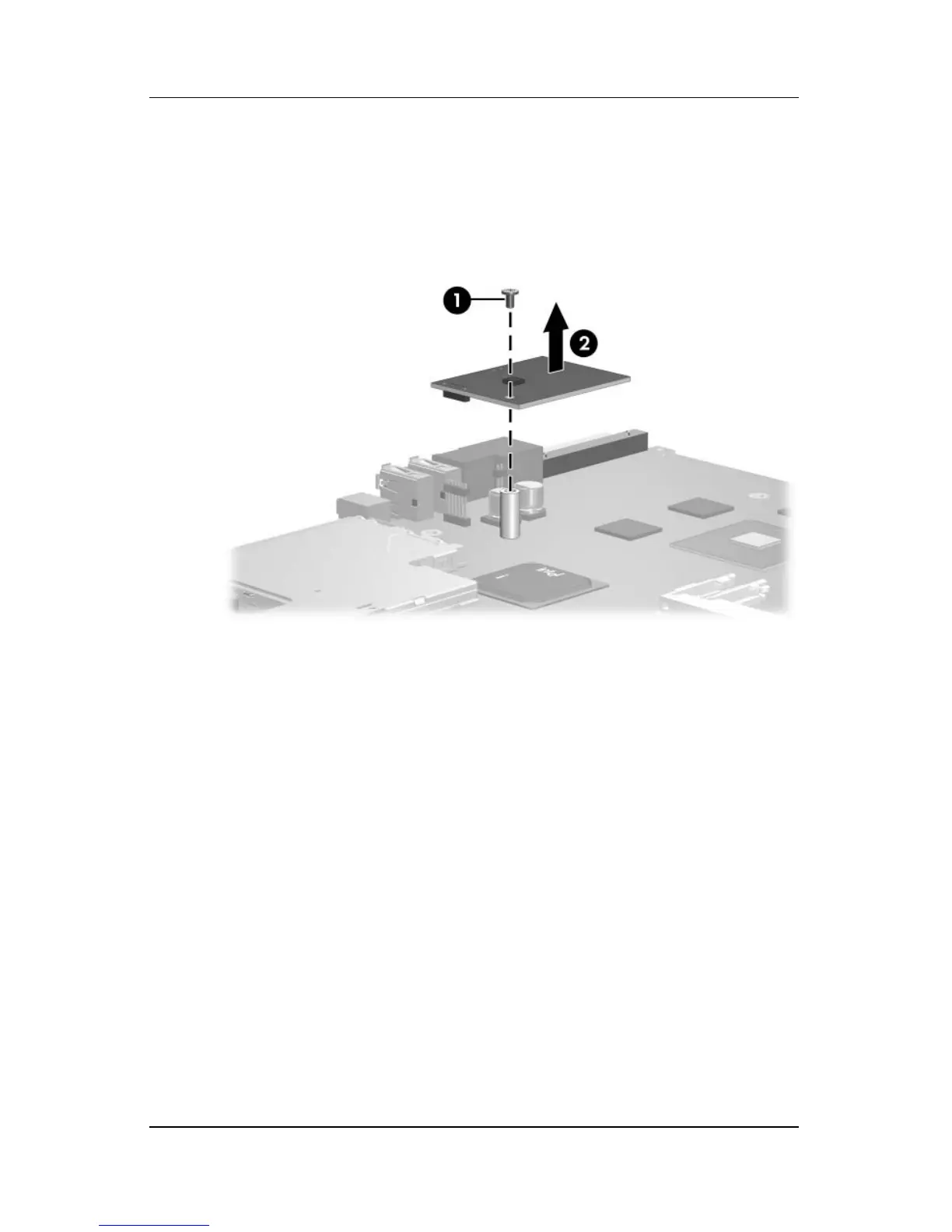

3.
Remov
e
the PM2.0×3.0 scre
w
1
that secures the modem
board to the system board.
4.
Remov
e
the modem board
2
.
R
emo
v
ing the Modem Boar
d
Re
verse the abo
v
e procedure to install the modem board.
