C–2 Maintenance and Service Guide
Screw Listing

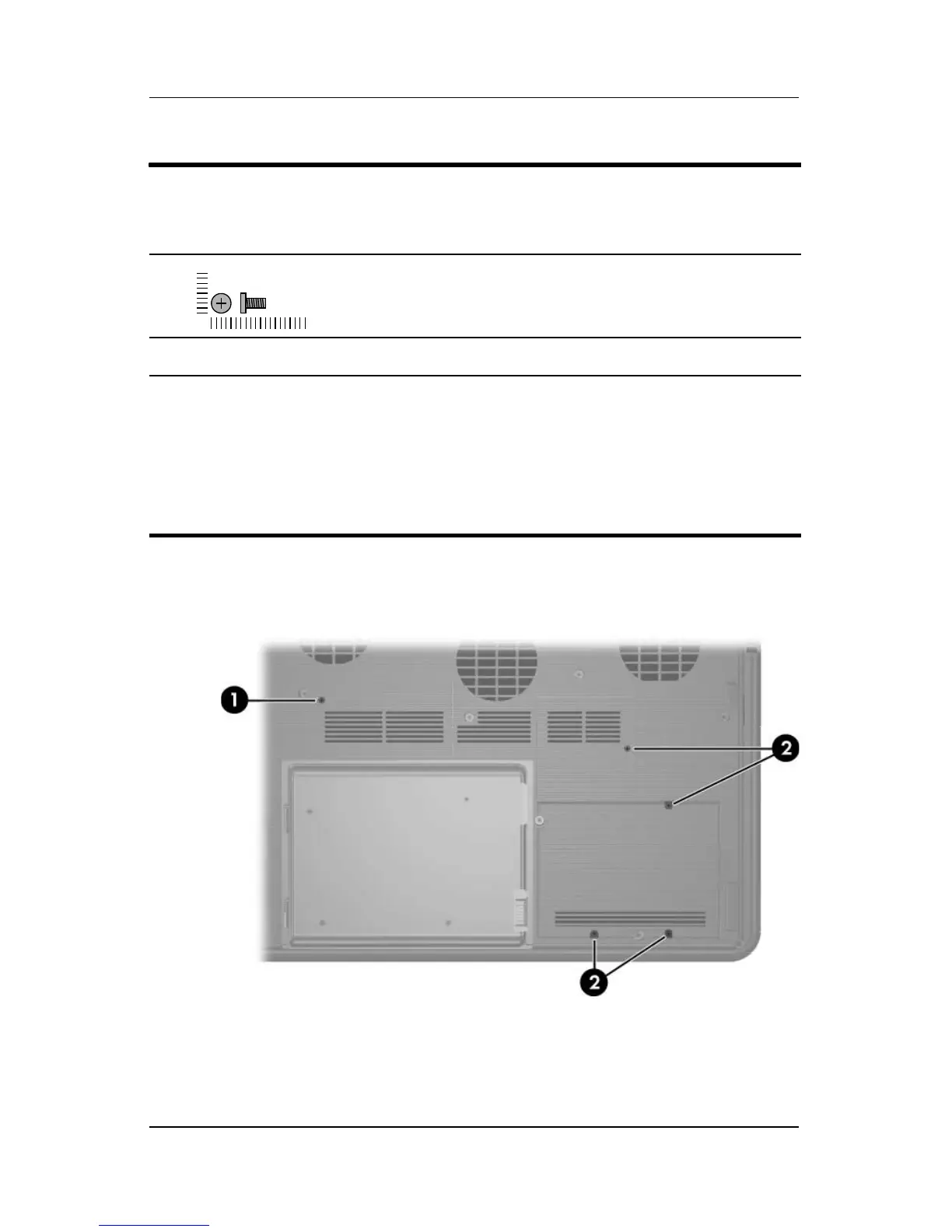

Phillips M2.0×5.0 Screw Locations
Table C-1
Phillips PM2.0×5.0 Screw
Color Qty. Length Thread
Head
Width
Black 5 5.0 mm 2.0 mm 4.0 mm
Where used:
1 One screw that secures the memory module compartment cover to the
notebook (screw is captured on the cover by a C clip;
documented in Section 5.6)
2 Four screws that secure the hard drive cover to the notebook (screws are
captured on the cover by C clips; documented in Section 5.3)
