C–4 Maintenance and Service Guide
Screw Listing

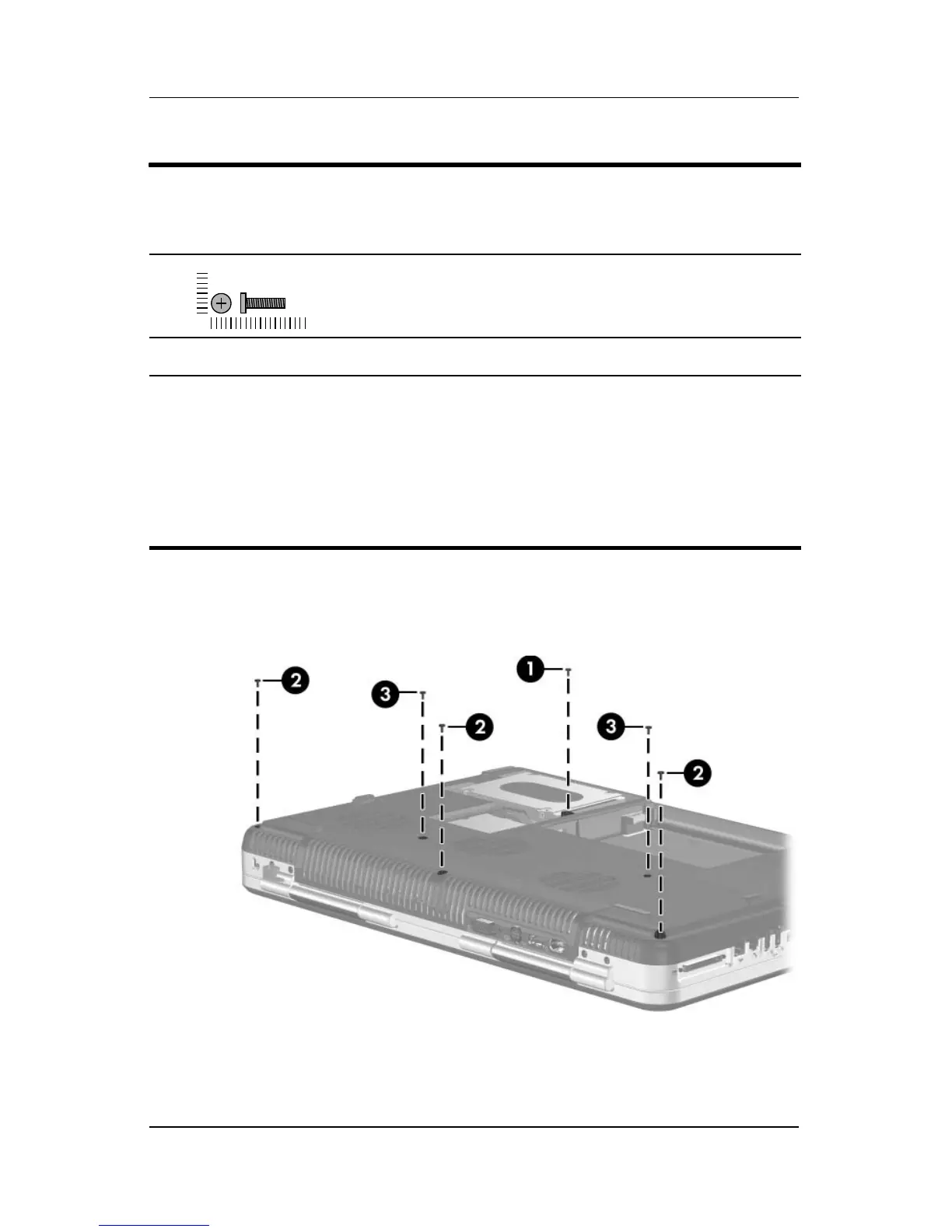

Phillips M2.0×8.0 Screw Location
Table C-3
Phillips PM2.0×8.0 Screw
Color Qty. Length Thread
Head
Width
Black 43 8.0 mm 2.0 mm 4.0 mm
Where used:
1 One screw that secures the optical drive to the notebook
(documented in Section 5.5)
2 Three screws that secure the switch cover to the notebook
(documented in Section 5.8)
3 Two screws that secure the keyboard to the notebook
(documented in Section 5.10)
